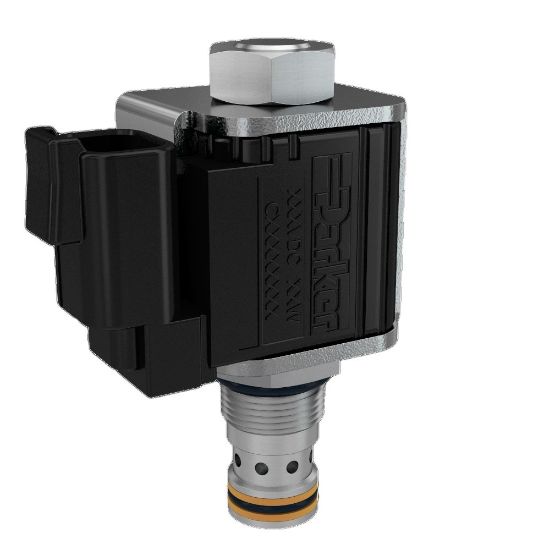

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2 Way Flow Control Proportional Valves - HP02P2100N

Name: 2 Way Flow Control Proportional Valves - HP02P2100N
SKU: HP02P2100N

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU HP02P2100N

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Actuation Type	Electrical
Flow Rate	4, 5 GAL/MIN, 15, 19 L/MIN	Configuration	Normally Open, Partially Pressure Compensated
Actuation Type	Electrical	Seal Material	Nitrile
Connection Size	n/a	Connection Type	n/a
Weight	0.17	Body Material	n/a
Minimum Operating Temperature	-30	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Flow Direction	Bi-directional
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	3000
Override Functionality	n/a	Coil Type	1/2" Super Coil High Watt (CCP)
Operation Type	Solenoid Operated	Power Consumption	19
Coil Nut Tightening Torque	3	Maximum Inlet Pressure Rating	3000
Function	Proportional Flow Control/Regulator	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Wire Mesh Screen Included	No	Variation of Opening Point	N/A
Operating Temperature	-30 to +250	Frequency	100-400
Maximum Operating Temperature	+250	Installation Torque	15
Hysteresis	< 10%	Flow Rate	4, 5
Maximum Flow Rate	4, 5	Current	Max: 1.58 @ 12 VDC, 0.79 @ 24 VDC
Leak Rate	1135 @ 3000 PSI (210 BAR)	Cavity Size	2X
Configuration	Normally Open, Partially Pressure Compensated	Flow Rate Accuracy	Up to 20%
Variation of Closing Point	75% of Input Signal	Minimum Pressure Differential	N/A
