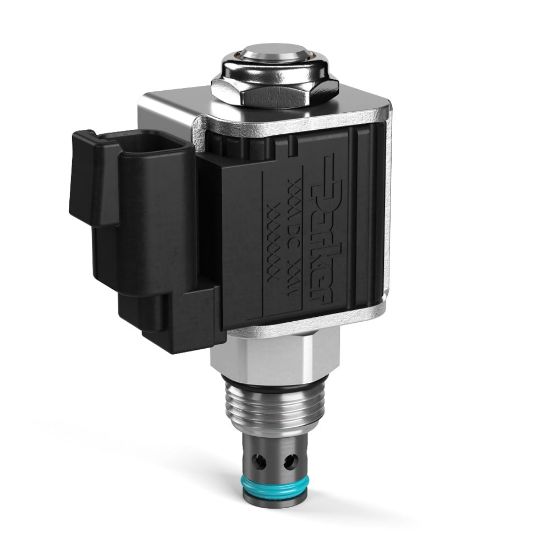

2 Way Poppet Type Solenoid Valve - DSL081NRTVS

Name: 2 Way Poppet Type Solenoid Valve - DSL081NRTVS
SKU: DSL081NRTVS

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:

Backordered

SKU DSL081NRTVS

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Configuration	Normally Open
Flow Rate	8 GAL/MIN, 30 L/MIN	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	Yes	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Systems Division	Flow Direction	Side to Nose (2-1)
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-26 °C
Function	2-Way	Maximum Flow Rate	30 L/min
Flow Rate	30 L/min	Cavity Size	C08-2
Wire Mesh Screen Included	Yes	Maximum Operating Pressure	250 bar
Weight	0.25 lb	Configuration	Normally Open
Actuation Type	Electrical, Manual	Maximum Operating Temperature	+204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-26 to +204 °C	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Override Functionality	Push and Twist	Coil Nut Tightening Torque	7-10 Nm
Free Reverse Flow	Yes	Adjustment Mechanism	N/A
Installation Torque	23-27 lb-ft	Maximum Inlet Pressure Rating	250 bar
