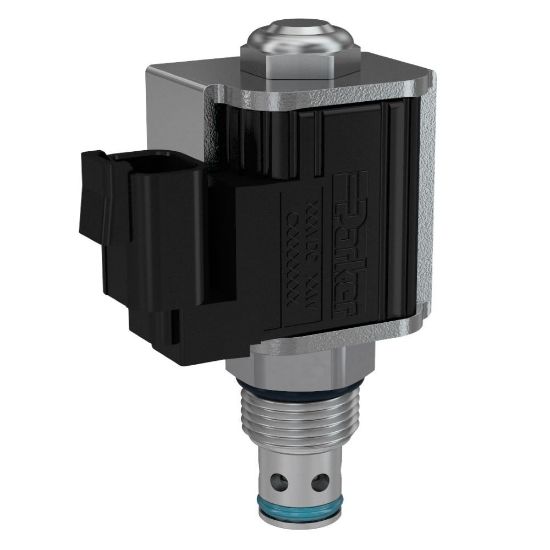

2 Way Spool Type Solenoid Valve - DSH102CTS

Name: 2 Way Spool Type Solenoid Valve - DSH102CTS
SKU: DSH102CTS

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:

Backordered

SKU DSH102CTS

POR

Qty:

Products specifications

Attribute name	Attribute value
Configuration	Normally Closed	Flow Rate	8 GAL/MIN, 30 L/MIN
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	Yes
Minimum Operating Temperature	-35	Body Material	n/a
Maximum Operating Pressure	5000	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.4
Function	2-Way	Maximum Flow Rate	8
Wire Mesh Screen Included	Yes	Flow Rate	8
Cavity Size	C10-2	Maximum Inlet Pressure Rating	5000
Maximum Operating Temperature	+200	Configuration	Normally Closed
Actuation Type	Electrical, Manual	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Mounting Type	Screw in cartridge valve
Operating Temperature	-35 to +200	Input Voltage	85% of rated voltage at 72°F (20°C)
Response Time	30	Override Functionality	Push and Twist
Coil Nut Tightening Torque	5-7	Leak Rate	160 CC/min @ 5000 PSI (350 BAR)
Seal Material	D-Ring	Coil Type	5/8" Super Coil
Installation Torque	51-55
