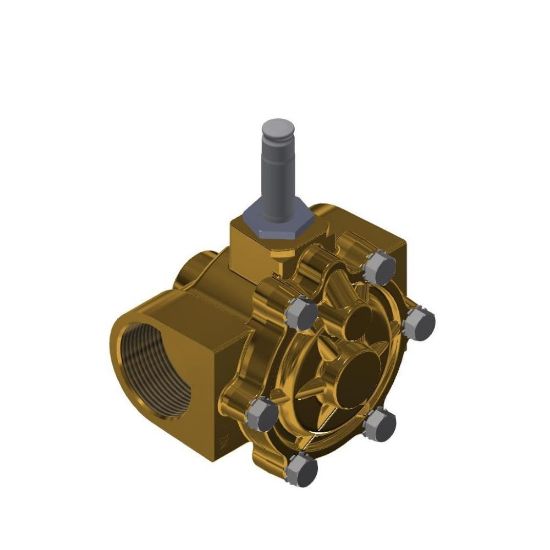

24 Series - General Purpose Solenoid Valves - 12F24C2148AAF

Name: 24 Series - General Purpose Solenoid Valves - 12F24C2148AAF
SKU: 12F24C2148AAF

High Flow General Purpose Solenoid Valves

Availability:

Backordered

SKU 12F24C2148AAF

POR

Qty:

Products specifications

Attribute name	Attribute value
Media	General Purpose	Function	Normally Closed
Coil Type	Requires Coil from Chart 1	Port Size	3/4
Port Type	NPT	Installation	IOM 7235
Orifice Size	3/4	Body Material	BRASS
Input Voltage	Pressure Vessel Only	Seal Material	NBR
Actuation Type	Internally Piloted	Insulation Class	N/A
Power Consumption	6.0	Specifications Met	CE - Low Voltage, EMC
Valve Configuration	2 Way	Main Flow Coefficient	6.5
Ingress Protection Rating	N/A	Maximum Fluid Temperature	180.0
Preventive Maintenance Kit	12F24C2148AAFR	Maximum Ambient Temperature	130.0
Maximum Pressure Differential	250 / 150 (Water)	Minimum Pressure Differential	5.0
Media	General Purpose	Function	Normally Closed
Coil Type	Requires Coil from Chart 1	Port Size	3/4 inch
Port Type	NPT	Installation	IOM 7235
Orifice Size	3/4 inch	Body Material	Brass
Input Voltage	Pressure Vessel Only	Seal Material	NBR
Actuation Type	Internally Piloted	Insulation Class	N/A
Power Consumption	6.0 W	Specifications Met	UL, CSA Listed General Purpose Valve
Division	Fluid Control Division	Valve Configuration	2 Way
Main Flow Coefficient	6.5 Cv	Ingress Protection Rating	N/A
Maximum Fluid Temperature	180.0 °F	Preventive Maintenance Kit	12F24C2148AAFR
Maximum Ambient Temperature	130.0 °F	Maximum Pressure Differential	250 / 150 (Water) psi
Minimum Pressure Differential	5.0 psi

Product resources

Literature and Reference Materials

Tube Seal (PDF)
