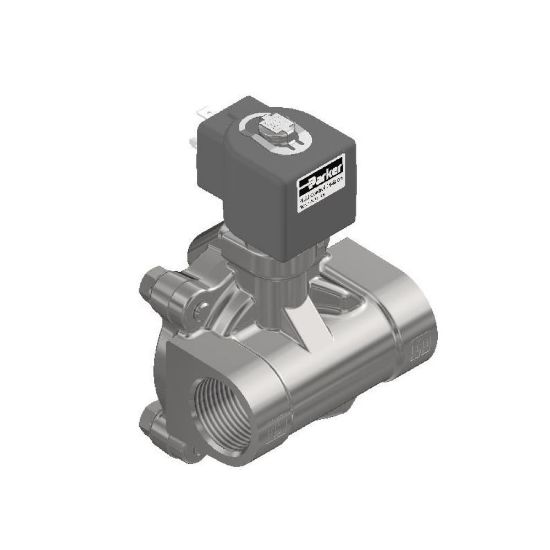

Picture of 24 Series - General Purpose Solenoid Valves - 16F24C6164A3FPH80

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24 Series - General Purpose Solenoid Valves - 16F24C6164A3FPH80

High Flow General Purpose Solenoid Valves
Availability:
Backordered
SKU 16F24C6164A3FPH80
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port TypeNPTSeal MaterialNBR
Coil TypeDIN 43650A / ISO 4400Body Material316 Stainless Steel
MediaGeneral PurposeFunctionNormally Closed
Input Voltage24.0Actuation TypeInternally Piloted
Insulation ClassClass FPower Consumption11.5
Valve Configuration2 WayIngress Protection RatingNEMA 4,4X
Maximum Fluid Temperature150.0Maximum Ambient Temperature77.0
Minimum Pressure Differential5.0InstallationIOM 7235
Specifications MetCE - Low Voltage, EMCMaximum Pressure Differential125.0
Port Size1Orifice Size1
Main Flow Coefficient13.0Preventive Maintenance Kit16F24C6164A3FR
Port TypeNPTPort Size1 inch
DivisionFluid Control DivisionInput Voltage24.0 VDC
Seal MaterialNBRMediaGeneral Purpose
FunctionNormally ClosedCoil TypeDIN 43650A / ISO 4400
Body Material316 Stainless SteelActuation TypeInternally Piloted
Power Consumption11.5 WMaximum Fluid Temperature150.0 °F
Minimum Pressure Differential5.0 psiInsulation ClassClass F
Valve Configuration2 WayIngress Protection RatingNEMA 4,4X
Maximum Ambient Temperature77.0 °FInstallationIOM 7235
Specifications MetCE - Low Voltage, EMCMaximum Pressure Differential125.0 psi
Orifice Size1 inchMain Flow Coefficient13.0 Cv
Preventive Maintenance Kit16F24C6164A3FR
Product resources

Literature and Reference Materials
