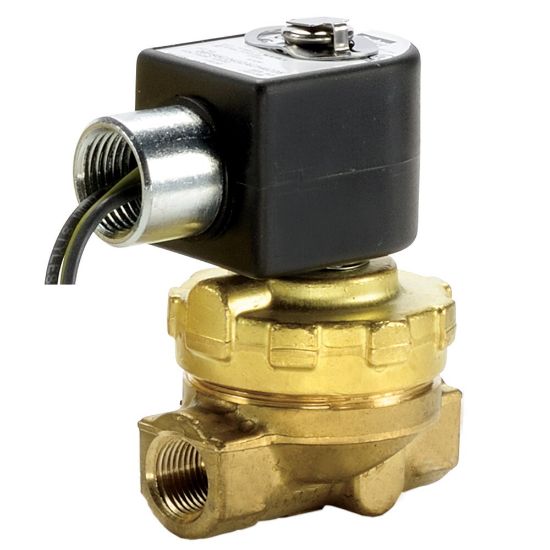

Picture of 25 & S5 Series - Water, Hot Water, & Steam Valves - 12F25CL348ACF4C05

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25 & S5 Series - Water, Hot Water, & Steam Valves - 12F25CL348ACF4C05

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.
Availability:
Backordered
SKU 12F25CL348ACF4C05
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialEPDMPort TypeNPT
Coil Type1/2" NPT Conduit w/ Leads (Incl. Ground Lead)FunctionNormally Closed
Input Voltage120/60, 110/50Actuation TypeInternally Piloted
Ingress Protection RatingNEMA 4,4XMaximum Fluid Temperature180.0
MediaWater, Hot WaterInstallationIOM 7320
Body MaterialLead-Free BrassSpecifications MetUL, CSA Listed General Purpose Valve; SDWA Section 1417(d) brass; CE - Low Voltage, EMC
Maximum Ambient Temperature131.0Maximum Pressure Differential235.0
Minimum Pressure Differential1.0Valve Type2 Way
Maximum Steam Pressure-Port Size3/4
Orifice Size3/4Power Consumption12.0
Main Flow Coefficient7.4Preventive Maintenance Kit12F25CL348ACFR
Port TypeNPTPort Size3/4 inch
DivisionFluid Control DivisionFunctionNormally Closed (NC)
Valve Type2-WaySeal MaterialEPDM
Maximum Fluid Temperature180 °FMediaWater
Coil Type1/2" NPT Conduit w/ Leads (Incl. Ground Lead)InstallationIOM 7320
Body MaterialLead-Free BrassActuation TypeInternal Pilot
Specifications MetEMCIngress Protection RatingNEMA 4X
Maximum Ambient Temperature131 °FMaximum Pressure Differential235 psi
Minimum Pressure Differential1.0 psiMaximum Steam Pressure- psi
Input Voltage120/60 VACOrifice Size3/4 inch
Power Consumption12 WMain Flow Coefficient7.4 Cv
Preventive Maintenance Kit12F25CL348ACFR
