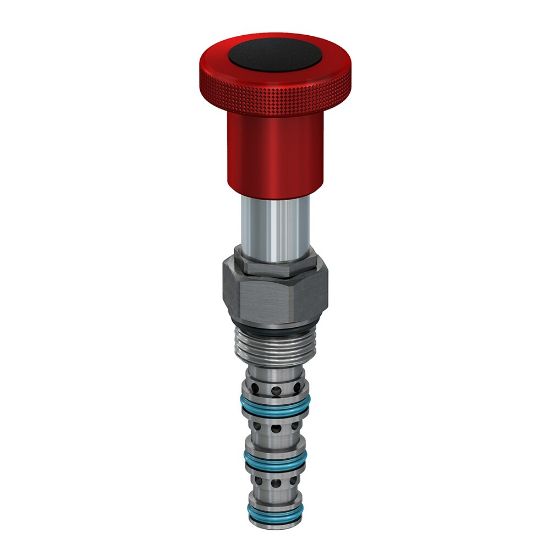

3 Position, 4 Way Pull/Push to Shift Spool Type Manual Valve - DMH085C2D

Name: 3 Position, 4 Way Pull/Push to Shift Spool Type Manual Valve - DMH085C2D
SKU: DMH085C2D

REGIONAL - Parker’s 3-position, 4-way manual spool valves are spring centered shift by pushing and pulling with available detents and are capable of flows up to 19 lpm (5 gpm) and pressures as high as 350 bar (5000 psi).

Availability:

Backordered

SKU DMH085C2D

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	D-Ring (Standard)	Detents	Yes
Configuration	Open Center	Flow Rate	4 GAL/MIN, 15 L/MIN
Minimum Operating Temperature	-35	Body Material	n/a
Maximum Operating Pressure	5000	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operation Type	Manual
Weight	0.25	Leak Rate	n/a
Maximum Inlet Pressure Rating	5000	Flow Rate	4
Seal Material	D-Ring (Standard)	Cavity Size	C08-4
Maximum Operating Temperature	+200	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Function	Spool Type	Maximum Tank Pressure	500
Detents	Yes	Configuration	Open Center
Actuation Type	Push/Pull to shift	Maximum Flow Rate	4.5
Installation Torque	36	Operating Temperature	-35 to +200
Force	11
