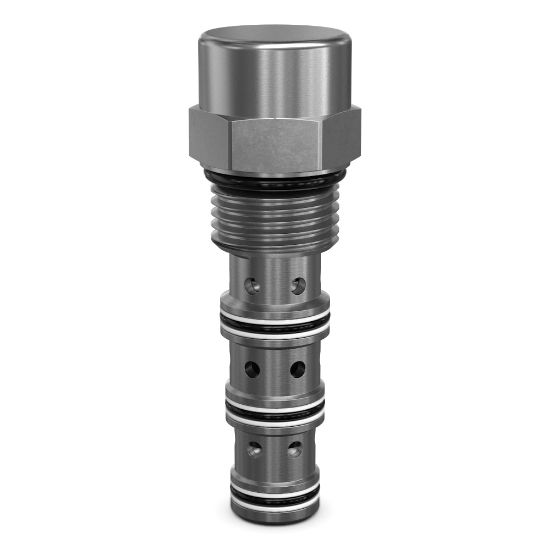

3 Way Pilot Operated Directional Control Valves - DH103A16V

Name: 3 Way Pilot Operated Directional Control Valves - DH103A16V
SKU: DH103A16V

3-way Pilot Operated, Threaded Cartridge Spool Valves used in normally closed or normally open directional control three way circuits requiring remote pilot actuation.

Availability:

Backordered

SKU DH103A16V

POR

Qty:

Products specifications

Attribute name	Attribute value
Switching Pressure	160 PSI, 11 BAR	Sealed Pilot Included	N/A
Seal Material	Fluorocarbon	Configuration	Normally Open
Flow Rate	10 GAL/MIN, 38 L/MIN	Flow Direction	2-3 Neutral, 3-4 Piloted
Minimum Operating Temperature	-15	Operation Type	Pilot Operated
Seal Material	Fluorocarbon	Maximum Operating Pressure	3500
Function	Directional Control	Sealed Pilot Included	N/A
Maximum Inlet Pressure Rating	3500	Flow Direction	2-3 Neutral, 3-4 Piloted
Pilot Location	External	Valve Material	All parts steel. All operating parts hardened steel
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pilot to shift
Configuration	Normally Open	Maximum Operating Temperature	+400
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Switching Pressure	160
Cavity Size	C10-4	Installation Torque	16
Leak Rate	50 @ 3500 PSI (240 BAR)	Maximum Flow Rate	10
Flow Rate	10	Body Material	n/a
Weight	0.5	Drain Option	Vent to Atmosphere
Standard Flow Rate Setting	n/a	Operating Temperature	-15 to +400
