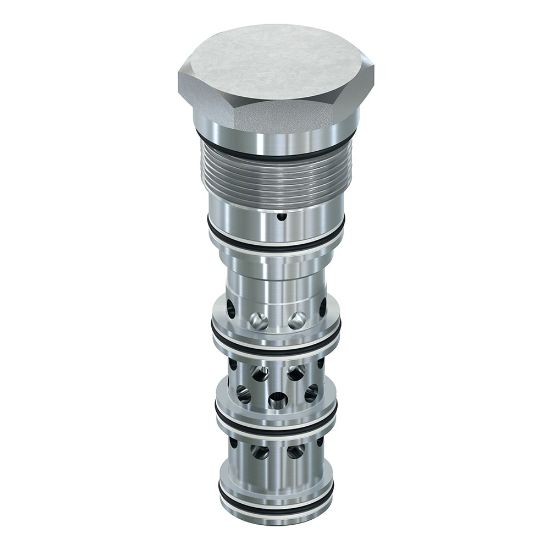

3 Way/2 Position Pilot Operated Directional Control Valves - N5A300-3.0N

Name: 3 Way/2 Position Pilot Operated Directional Control Valves - N5A300-3.0N
SKU: N5A300-3.0N

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:

Backordered

SKU N5A300-3.0N

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Flow Direction	2-3 Neutral, 3-4 Piloted
Configuration	Open Transition	Flow Rate	105 GAL/MIN, 400 L/MIN
Switching Pressure	44 PSI, 3 BAR	Standard Flow Rate Setting	71 GAL/MIN, 270 L/MIN
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	6000 psi	Division	Hydraulic Systems Division
Operation Type	Pilot Operated	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Weight	2.2 lb	Maximum Inlet Pressure Rating	6000 psi
Flow Rate	400 L/min	Drain Option	External
Function	Diverter	Maximum Operating Temperature	+121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Flow Direction	2-3 Neutral, 3-4 Piloted	Cavity Size	100-1
Configuration	Open Transition	Actuation Type	Switching
Maximum Flow Rate	105 Gal/min	Leak Rate	400 @ 2900 PSI (200 BAR) cm3/min
Switching Pressure	44 psi	Installation Torque	160 Nm
Standard Flow Rate Setting	71 Gal/min
