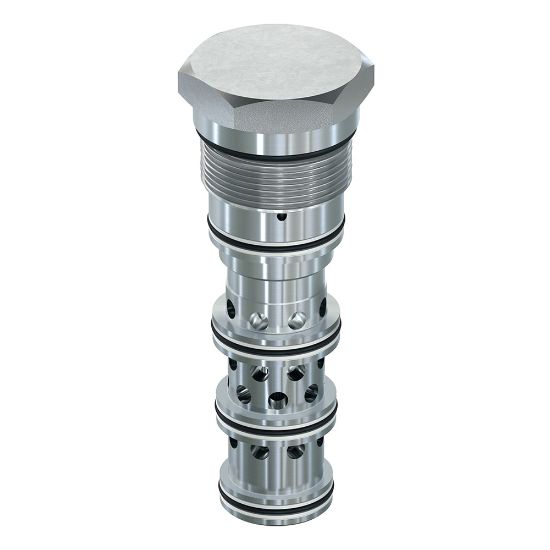

3 Way/2 Position Pilot Operated Directional Control Valves - N5C300-6.9V

Name: 3 Way/2 Position Pilot Operated Directional Control Valves - N5C300-6.9V
SKU: N5C300-6.9V

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:

Backordered

SKU N5C300-6.9V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Configuration	Normally Open
Switching Pressure	100 PSI, 6.9 BAR	Flow Rate	105 GAL/MIN, 400 L/MIN
Flow Direction	2-3-4 Neutral, 2,3,4 Blocked Piloted	Standard Flow Rate Setting	34 (3 to 2), 63 (3 to 4) GAL/MIN, 130 (3 to 2), 240 (3 to 4) L/MIN
Seal Material	Fluorocarbon	Body Material	n/a
Operation Type	Pilot Operated	Pilot Location	External
Switching Pressure	100 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15 °F	Maximum Operating Pressure	420 bar
Division	Mobile Hydraulic Systems Division Europe	Maximum Inlet Pressure Rating	6000 psi
Weight	1 kg	Drain Option	External
Function	Diverter	Configuration	Normally Open
Maximum Operating Temperature	+204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400 °F	Flow Rate	105 Gal/min
Cavity Size	100-1	Actuation Type	Switching
Maximum Flow Rate	105 Gal/min	Leak Rate	400 @ 2900 PSI (200 BAR) cm3/min
Flow Direction	2-3-4 Neutral, 2,3,4 Blocked Piloted	Installation Torque	118 lb-ft
Standard Flow Rate Setting	34 (3 to 2), 63 (3 to 4) Gal/min
