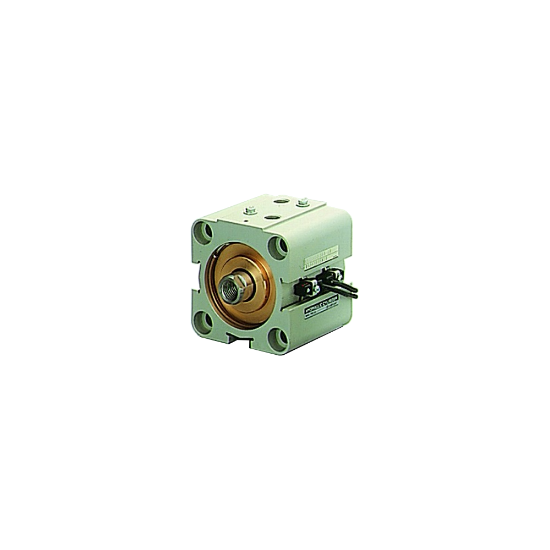

3.5MPa Compact Design Hydraulic Cylinder Model:35S-1 - 35S-1RD

Name: 3.5MPa Compact Design Hydraulic Cylinder Model:35S-1 - 35S-1RD
SKU: 35S-1RD

Series 35S-1 Compact hydraulic cylinder for 3.5MPa, which has a mounting space that is about half that of the conventional tie rod type. The stroke length can be set in 1 mm increments.

Availability:

Backordered

SKU 35S-1RD

POR

Qty:

Products specifications

Attribute name	Attribute value
Fluid Type	Petroleum-based fluid(When using another fluid,give us such instructions.)	Screw Tolerance	JIS 6g/6H
Type	Double Acting Double Rod, Switch set	Body Material	Aluminum alloy
Rod End Thread Type	Female thread and male thread	Stroke Length Tolerance (mm)	0-+1.0
Cushioning Type	None	Speed Range	8-100mm/s
Mounting Style	SD	Proof Pressure (MPa)	5
Nominal Pressure (MPa)	3.5	Seal Material	HNBR
Bore Diameter (mm)	20, 32, 40, 50, 63	Temperature Range (C)	-10-+70（AX type）, -10-+60 (WR,WS type, No freezing, ambient/fluid temperature)
Maximum Working Pressure (MPa)	4	Minimum Operating Pressure (MPa)	0.15(φ20-32), 0.1(φ40-63)
Division	TAIYO Division
