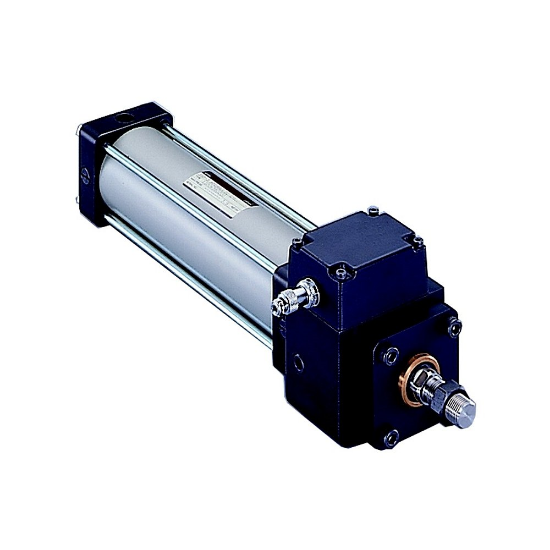

Picture of 3.5MPa Hydraulic Cylinder with Position Detector Model:35P-3 - 35P-3R

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

3.5MPa Hydraulic Cylinder with Position Detector Model:35P-3 - 35P-3R

The 35P-3 series is a 3.5MPa hydraulic cylinder with position sensor. Tie rod style sets the standard for superior performance, durability and trouble-free operation Design and quality that guarantees long cylinder life.
Availability:
Backordered
SKU 35P-3R
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body MaterialStainless SteelCushioning TypeMetal fitting system
Screw ToleranceJIS 6g/6HTypeDouble Acting Single Rod, Switch set
Bore Diameter (mm)32, 40, 50, 63, 80, 100Seal Material1:Nitrile rubber 8:Slipper Seal
Output TypeStandard:12V DC voltage output Phase A & B (90°phase)30mA or less Semi-standard:NPN open collector output Phase A & B (90°phase)Applied voltage : 24 V DC or less Sink current:30mA or lessSpeed Range8-300mm/s(U seal), 0.1-300mm/s(Slipper seal)
Mounting StyleSD,LA,LB,FG,FH,CTResolution (mm)0.1mm/Pulse
Rod End StylesRod eye (T-end), rod clevis (Y-end) with pin, Floating joint(F-end:Do not use together with Mounting style CT accessories.)Operating Humidity90%RH(no condensing)
Proof Pressure (MPa)5Input Supply VoltageStandard:12 DC, Semi-standard:12V-24 DC
Temperature Range (C)-10-+50 (No freezing)Nominal Pressure (MPa)3.5
Stroke Length Tolerance (mm)0-+1.0(0-250mm), 0-+1.4(251-1000mm), 0-+1.8(1001-1800mm)Length Measuring Error (mm/m)0.5 (Length measuring error per meter of total moving distance)
Maximum Response Speed (mm/s)300Maximum Working Pressure (MPa)4.5
Minimum Operating Pressure (MPa)0.2DivisionTAIYO Division
