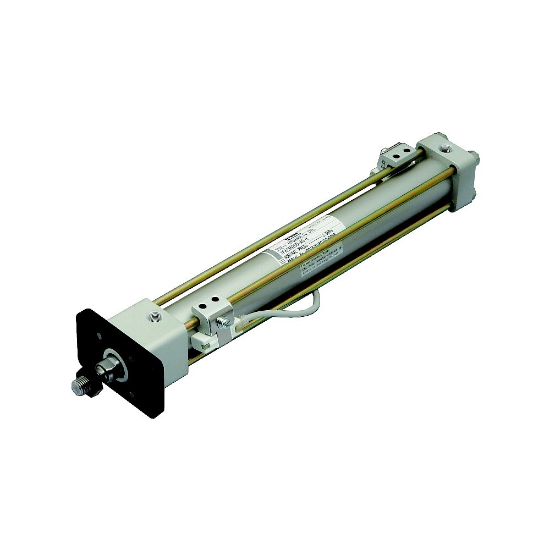

3.5MPa Small-bore Hydraulic Cylinder Model：35Z-1 - 35Z-1R

Name: 3.5MPa Small-bore Hydraulic Cylinder Model：35Z-1 - 35Z-1R
SKU: 35Z-1R

The 35Z-1 series is a 3.5MPa specification tie rod type hydraulic cylinder. Tie rod style sets the standard for superior performance, durability and trouble-free operation.

Availability:

Backordered

SKU 35Z-1R

POR

Qty:

Products specifications

Attribute name	Attribute value
Fluid Type	Petroleum-based fluid(When using another fluid,give us such instructions.)	Screw Tolerance	JIS 6g/6H
Type	Double Acting Single Rod, Switch set	Bore Diameter (mm)	20, 25, 32
Related Parts	CB bracket	Cushioning Type	None
Temperature Range (C)	-10-+70 (No freezing)	Proof Pressure (MPa)	5
Nominal Pressure (MPa)	3.5	Speed Range	0.1-300mm/s
Seal Material	Nitrile rubber	Mounting Style	SD,LB,FA,FB,CA,CB with pin
Stroke Length Tolerance (mm)	0-+1.0(0-250mm), 0-+1.4(25-600mm)	Maximum Working Pressure (MPa)	4
Rod End Thread Type	Rod eye(S-end)with spherical bearing,Rod clevis(Y-end)with pin, Floating joint(F-end:Do not use together with Mounting style CA and CB accessories.)	Division	TAIYO Division
