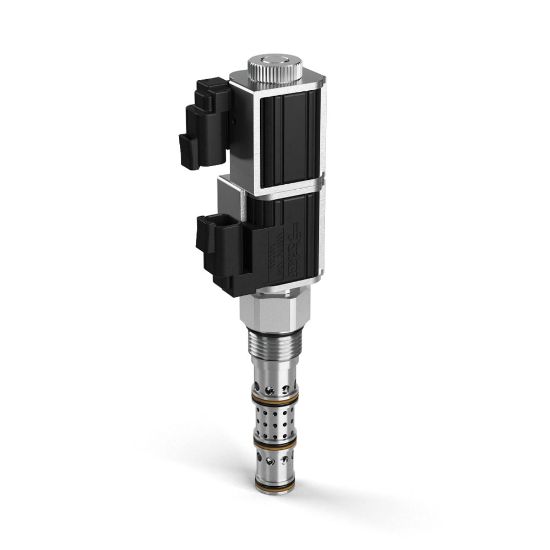

4 Way 3 Position Spool Type Solenoid Valve - DSH12557DNV

Name: 4 Way 3 Position Spool Type Solenoid Valve - DSH12557DNV
SKU: DSH12557DNV

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:

Backordered

SKU DSH12557DNV

POR

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	15 GAL/MIN, 57 L/MIN	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical, Manual	Configuration	Tandem Center
Seal Type	Fluorocarbon	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000 psi
Flow Rate	15 Gal/min	Division	Hydraulic Systems Division
Maximum Flow Rate	57 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15 °F	Maximum Inlet Pressure Rating	5000 psi
Coil Nut Tightening Torque	3 lb-ft	Weight	0.45 kg
Cavity Size	C12-4L	Function	4-Way
Actuation Type	Electrical, Manual	Maximum Operating Temperature	+400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-26 to +204 °C	Mounting Type	Screw in cartridge valve
Configuration	Tandem Center	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Type	5/8" Super Coil	Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min
Response Time	30-60 ms	Installation Torque	55 lb-ft
Override Functionality	Push/Pull - Center Detent	Maximum Tank Pressure	210 bar
