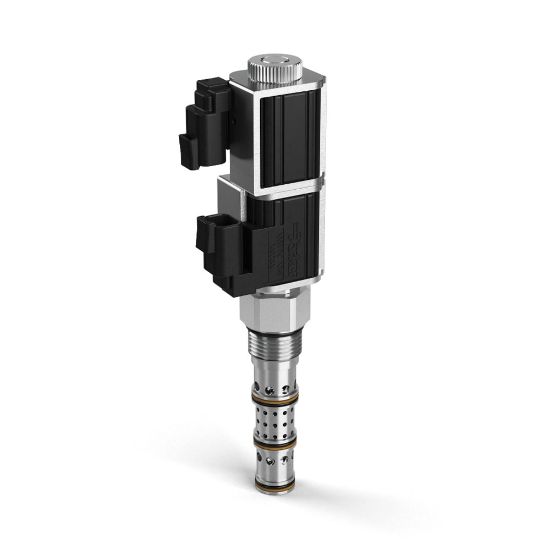

4 Way 3 Position Spool Type Solenoid Valve - DSH12559DNV

Name: 4 Way 3 Position Spool Type Solenoid Valve - DSH12559DNV
SKU: DSH12559DNV

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:

Backordered

SKU DSH12559DNV

POR

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	15 GAL/MIN, 57 L/MIN	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical, Manual	Configuration	Open Center
Seal Type	Fluorocarbon	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000
Flow Rate	15	Division	Hydraulic Systems Division
Maximum Flow Rate	15	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Weight	1
Maximum Inlet Pressure Rating	5000	Coil Nut Tightening Torque	3
Cavity Size	C12-4L	Function	4-Way
Actuation Type	Electrical, Manual	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400
Installation Torque	55	Maximum Operating Temperature	+400
Mounting Type	Screw in cartridge valve	Configuration	Open Center
Input Voltage	85% of rated voltage at 72°F (20°C)	Coil Type	5/8" Super Coil
Leak Rate	160 @ 3000 PSI (210 BAR)	Response Time	30-60
Override Functionality	Push/Pull - Center Detent	Maximum Tank Pressure	3000
