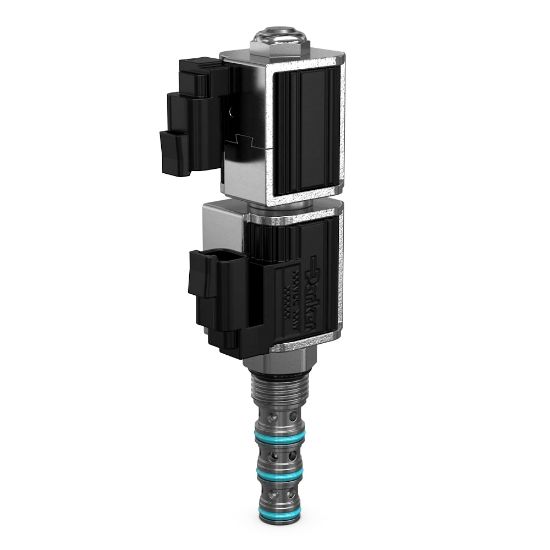

4 Way 3 Position Spool Type Solenoid Valve - DSL105C1MN

Name: 4 Way 3 Position Spool Type Solenoid Valve - DSL105C1MN
SKU: DSL105C1MN

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:

Backordered

SKU DSL105C1MN

POR

Qty:

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical, Manual	Configuration	Closed Center
Seal Type	Nitrile	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Flow Rate	7 GAL/MIN, 26 L/MIN	Seal Material	Nitrile
Body Material	n/a	Minimum Operating Temperature	-30
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Weight	0.64	Flow Rate	7
Cavity Size	C10-4	Function	4-Way
Actuation Type	Electrical, Manual	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250
Maximum Operating Temperature	+250	Mounting Type	Screw in cartridge valve
Configuration	Closed Center	Input Voltage	85% of rated voltage at 72°F (20°C)
Coil Nut Tightening Torque	5-7	Coil Type	5/8" Super Coil
Maximum Flow Rate	7	Maximum Operating Pressure	3600
Maximum Inlet Pressure Rating	3600	Leak Rate	160 @ 3600 PSI (250 BAR)
Installation Torque	37-41	Response Time	40-150
Override Functionality	Push/Pull	Maximum Tank Pressure	N/A
