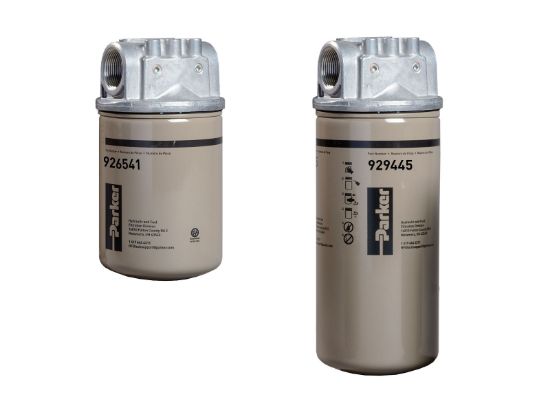

50AT Series Low Pressure Filter - 50AT10CN15DDH

Name: 50AT Series Low Pressure Filter - 50AT10CN15DDH
SKU: 50AT10CN15DDH

50AT Series Hydraulic and Lube Oil Low Pressure Filter

Availability:

Backordered

SKU 50AT10CN15DDH

POR

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Operating Temperature	-40F to 225F (-40C to 107C)	Element Length	Single
Nominal Filter Rating	10 micron	Seals	Nitrile
Indicator Type	No Indicator	Bypass	15 PSI (1.0 bar)
Gauge Port Location	Inlet And Outlet - Both Sides	Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)
Port	1 1/4 NPT	Nominal Flow Rating	35 GPM (132 LPM)
Replacement Element	926169	Parker Group	Filtration
Parker Division	Hydraulic Filter	Operating Temperature	-40F to 225F (-40C to 107C)
Filter Type	Low Pressure Filter	Nominal Filter Micron Rating	10 micron
Element Length	Single	Port Type	NPT
Indicator Type	No Indicator	Bypass	15 PSI (1.0 bar)
Gauge Port Location	Inlet And Outlet - Both Sides	Seals	Nitrile
Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)	Filter Media Code	10C
Filter Media Type	Cellulose	Nominal Flow Rating	30 GPM (114 LPM)
Series	50AT	Port	1 1/4 NPT

Product resources

12AT/50AT/80AT/80UT Series (PDF)
