80CN Series Medium Pressure Filter - 80CN102QEBE2GN244

Name: 80CN Series Medium Pressure Filter - 80CN102QEBE2GN244
SKU: 80CN102QEBE2GN244

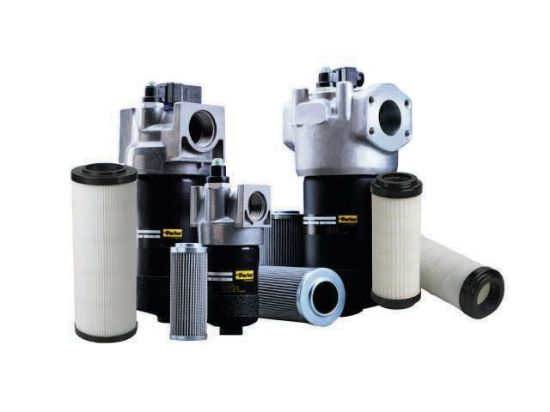

80CN Series Hydraulic and Lube Oil Medium Pressure Filter

Availability:

Backordered

SKU 80CN102QEBE2GN244

POR

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Operating Temperature	-40F to 225F (-40C to 107C)
Seals	Nitrile	Options	SAE-4 drain port on bowl
Bypass	25 PSI (1.7 bar)	Nominal Flow Rating	45 GPM (171 LPM)
Replacement Element	936713Q	Port	1 1/2 NPT
Element Length	Single	Max Pressure - Non-Fatigue MAOP	1000 psi (69 bar)
Pkg Qty	1	Indicator Type	Electrical/Visual (DIN-43650 Connection)
Nominal Filter Rating	2 micron	Max Pressure - Fatigue MAOP	800 psi (55.2 bar)
Filter Type	Medium Pressure Filter	Filter Media Type	Ecoglass III
Nominal Flow Rating	45 GPM (171 LPM)	Operating Temperature	-40F to 225F (-40C to 107C)
Parker Group	Filtration	Port Type	NPT
Port	1 1/2 NPT	Parker Division	Hydraulic Filter
Seals	Nitrile	Filter Media Code	02QE
Bypass	25 PSI (1.7 bar)	Options	SAE-4 drain port on bowl
Max Pressure - Non-Fatigue MAOP	1000 PSI (69 bar)	Element Length	Single
Series	80CN	Max Pressure - Fatigue MAOP	800 PSI (55.2 bar)
Indicator Type	Electrical/Visual (DIN-43650 Connection)	Nominal Filter Micron Rating	2 micron

Product resources

CN Series (PDF)
