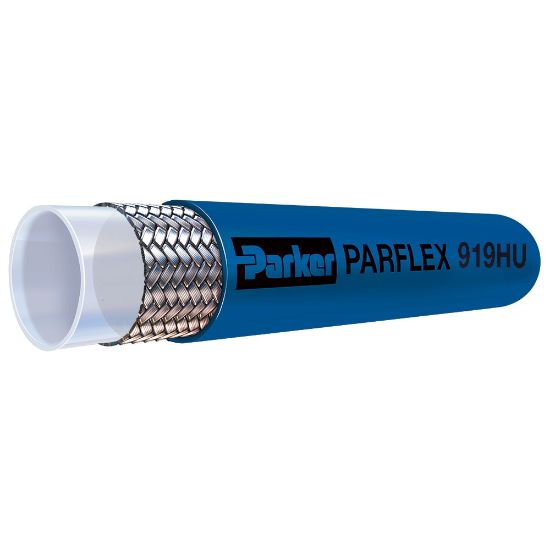

Picture of 919HU High Abrasion Resistant PTFE - 919HU-8-BLU

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

919HU High Abrasion Resistant PTFE - 919HU-8-BLU

Non-Marring, abrasion resistant polyurethane cover has very low, to near zero, parts per billion emissions of volatile organic compounds. Cover protects the stainless steel wire reinforcement against wear, fraying and contaminants.
Availability:
Backordered
SKU 919HU-8-BLU
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMinimum Operating Temperature-40
ApplicationChemical TransferHose Inner Tube MaterialPolytetrafluoroethylene (PTFE)
Hose Reinforcement MaterialBraid of Stainless SteelMediaChemicals
Vacuum Pressure Rating28Size-8
Cover MaterialPolyurethaneMinimum Bend Radius5
Cover ColorBlueWeight0.26
Outside Diameter0.660Inside Diameter13/32
Design Factor4Maximum Operating Pressure13.8
Maximum Operating Temperature135Compatible Fitting91 Series
Specifications MetSAE J517 and 100R1, Type 4A (Natural)
