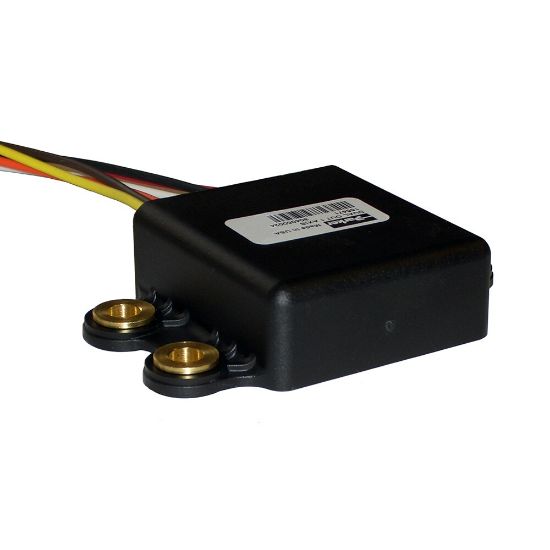

Picture of Accelerometer and Inclinometer Sensors - ACC Series - 171383ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Accelerometer and Inclinometer Sensors - ACC Series - 171383ECD

Parker's Accelerometer and Inclinometer Sensors are MEMs devices with an output voltage dependent on the amount of inertial force applied . The accelerometers and inclinometers have an inertial range up to ±1.5G.
Availability:
Backordered
SKU 171383ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Model NumberACC100DivisionElectronic Motion and Controls Division
Housing MaterialGlass-filled NylonIngress Protection Rating67
Minimum Operating Temperature-40Maximum Operating Temperature85
Sensor TypeTip/tiltElectrical ConnectionDTM04-4P
Mounting OptionFlangedPower Supply Voltage5 VDC Regulated
Number of Outputs2 opposingSignal Output1.675 to 3.192
Output Voltage±0.64G (±40 degrees)Operating Current5 mA max.
Mounting Hole Diameter8 mm (x3)
California Residents: Prop-65 Warning
