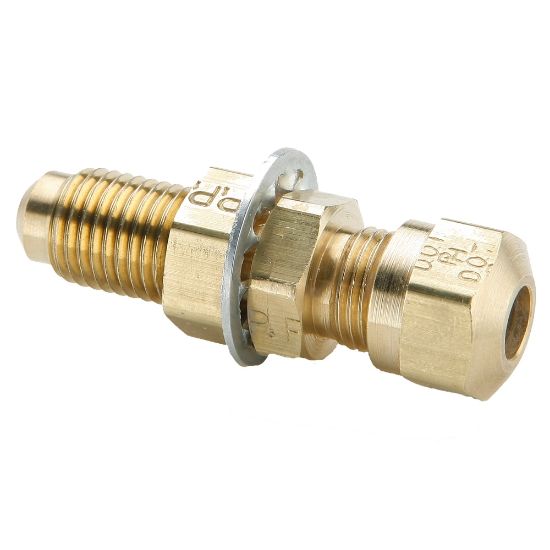

Picture of Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - 62NFBH-10-8

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - 62NFBH-10-8

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.
Availability:
Backordered
SKU 62NFBH-10-8
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection 3 StylenaConnection 3 Thread Size (inch)na
ShapeBulkheadConnection 2 Thread Size (inch)na
Connection 1 Tube O.D. (inch)5/8Connection 2 Tube O.D. (inch)1/2
Connection 1 StyleCompressionStyleTube to Flare
Connection 2 Style45 FlareDivisionFluid System Connectors Division
Minimum Operating Temperature-40 °FBody MaterialBrass
Maximum Operating Pressure10 barMaximum Operating Temperature93 °C
Nut MaterialBrassSleeve MaterialBrass
ApplicationAir Brake, AccessoriesTube MaterialStainless Steel
Specifications MetDOT FMVSS 571.106, SAE J1131, SAE J246Thread Sealant MaterialVibra-Seal 516
