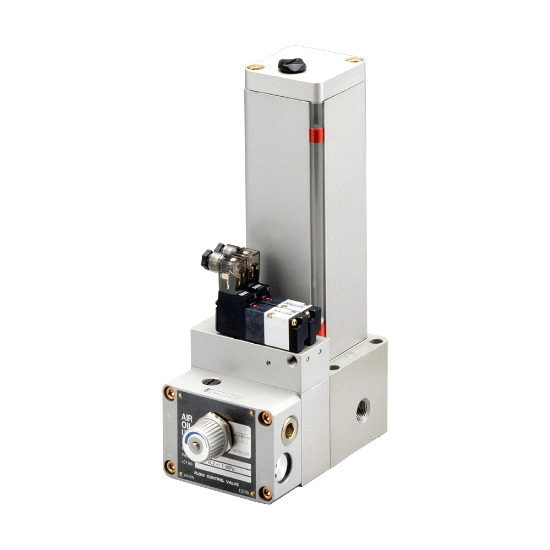

Picture of Air-Oil Unit Model:AHU2-063 (Convertor Capacity 0.16~1.6L) - H3FG00013660

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Air-Oil Unit Model:AHU2-063 (Convertor Capacity 0.16~1.6L) - H3FG00013660

Air-Oil Unit AHU2-063 series that converts pneumatic pressure to hydraulic control and realizes stable speed control. The same control as hydraulic such as constant speed control and arbitrary stop is possible.
Availability:
Backordered
SKU H3FG00013660
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Input Voltagen/aSensor type1 sensor
Capacity0.16 LDiameter63 mm
Sensor ConnectionZR3 (with contact, With lamp, Upper wiring, w/1.5 m cord)Optional AccessoriesN/A
Maximum Flow Rate (lpm)40Assembled Control Valve TypeWithout flow valve
Assembled Combined Valve TypeWithout valveDivisionTAIYO Division
Maximum Operating Pressure1 MPaFor Fluid TypePetroleum-based Fluid
Operating Temperature-5 ~+50 °C (No freezing)Proof Pressure1.5 MPa
Product StyleAir-Oil converterPilot Port SizeRc1/8
Pilot Pressure Ratio0.3xMain pressure+0.25MPa to 0.7MPa MPaLiquid Inlet Port SizeRc1/2
Minimum Opening Pressure0 MPaSupply Air Inlet Port SizeRc3/8
