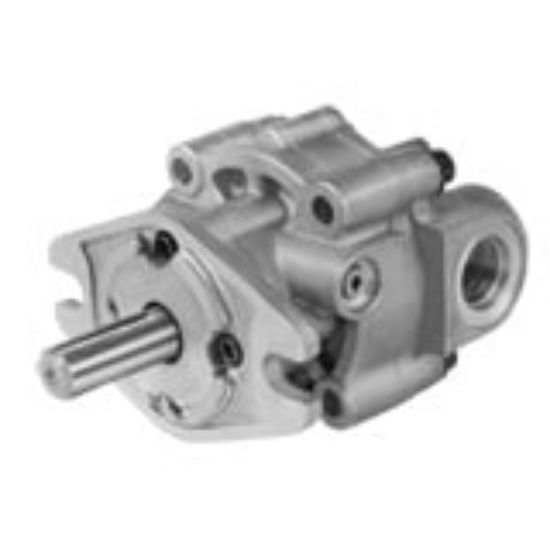

Aluminum Motors – MGG Series - 900323

Name: Aluminum Motors – MGG Series - 900323
SKU: 900323

Parker’s Aluminum Motor MGG Series fixed displacement High Speed Low Torque Gerotor motor offers high performance and high power density dues to its aluminum construction.

Availability:

Backordered

SKU 900323

POR

Qty:

Products specifications

Attribute name	Attribute value
Size	0020	Porting	SAE 8 Straight Thread - Side
Rotation	Bi-Direction	Shaft Type	5/8 Dia. 9-tooth spline
Weight (lbs)	3.1	Flow Rate (gpm)	1.95
Mounting Style	SAE 2-BOLT "A"	Shaft Seal Material	NBR
Motor Displacement (cu in/rev)	0.450	Division	Pump & Motor Division
Maximum Operating Pressure	2500 psi	Product Type	Gerotor Motor aluminum with roller bearing
Size	20 inch	Weight	1.41 kg
Flow Rate	1.95 Gal/min	Shaft Type	9-tooth Ø5/8 Spline
Displacement	0.45 cm3/rev (Pump)	Mounting Type	SAE 2-Bolt "A"
Torque Rating	72 lb-inch	Number of Ports	SAE 8 Straight Thread - Side
Shaft Seal Material	NBR	Direction of Rotation	Bi-Directional
Maximum Oil Temperature	82.2 °C	Maximum Operating Speed	5000 RPM
Filter Efficiency Rating	10 micron [recommended minimum]	Maximum Continuous Pressure	2000 psi
Maximum Kinematic Viscosity	150 SUS
