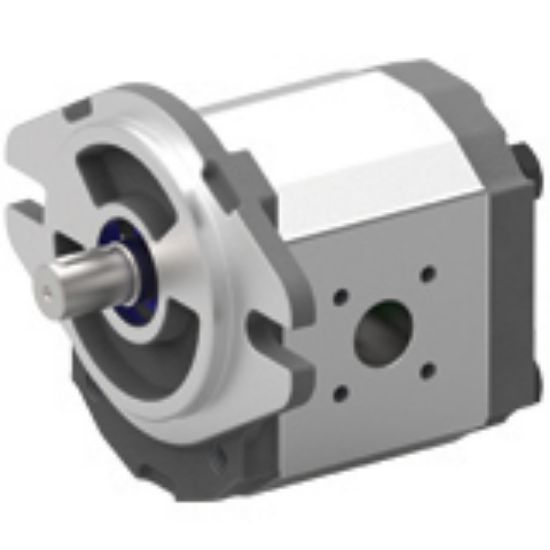

Aluminum Pumps – PGP517H Series - PGP517H SERIES

Name: Aluminum Pumps – PGP517H Series - PGP517H SERIES
SKU: PGP517H SERIES

Note: This product is no longer available - please contact us for further assistance.

Availability:

Backordered

SKU PGP517H SERIES

POR

Qty:

Products specifications

Attribute name	Attribute value
Displacement	Silent fixed displacement	Filter Included	No
Radial Load Capacity	n/a	Maximum Noise Level	63 dBA @2950 Rpm
Configuration	Single	Maximum Fluid Temperature	158
Energy Recovery Capability	No	Pump Type	Gear
Minimum Kinematic Viscosity	15	Circuit Path	Open
Body Material	Aluminum	For Fluid Type	Standard Hydraulic Fluids
Media	Standard Hydraulic Fluids	Maximum Kinematic Viscosity	150
Maximum Displacement	50.3	Maximum Operating Pressure	240
Weight	n/a	Drain Option	No
Minimum Fluid Temperature	-40	Control Method	No
Mounting Option	SAE	Maximum Flow Rate	n/a
Port Connection	ODT	Displacement	up to 3.07
Division	Pump & Motor Division	Maximum Operating Speed	3000
Flow Rate	n/a	Operating Pressure	up to 3481
