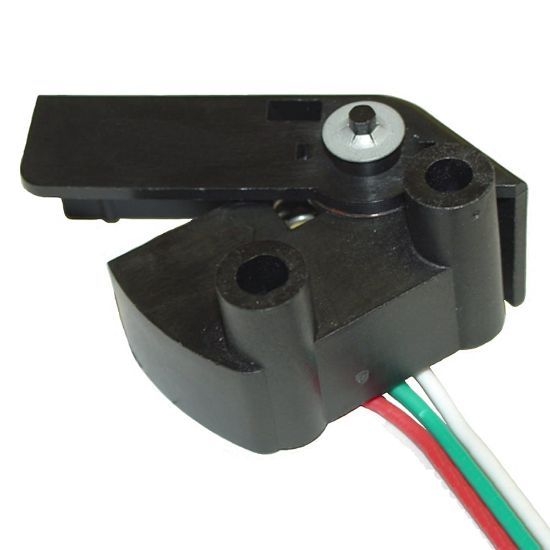

Picture of Analog Lever Distance Sensor - ADS - 01710ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Analog Lever Distance Sensor - ADS - 01710ECD

Parker's Analog Lever Distance Sensors are Hall Effect devices with an output voltage dependent upon the angular position of a lever arm. They utilize non-contacting technology and provide linear output over one inch (35 degrees) of travel.
Availability:
Backordered
SKU 01710ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Model NumberADS50Electrical ConnectionDTM04
Repeatability±1 %Minimum Operating Temperature-40 °C
Housing MaterialGlass-filled NylonWorking Length1 inch
Sensor TypeLinear LeverIngress Protection Rating66
Linearity±5%DivisionElectronic Motion and Controls Division
Signal Output0.5 to 4.5 VDCMounting Hole Diameter5.8 mm
Power Supply Voltage5 VDCMaximum Operating Temperature85 °C
