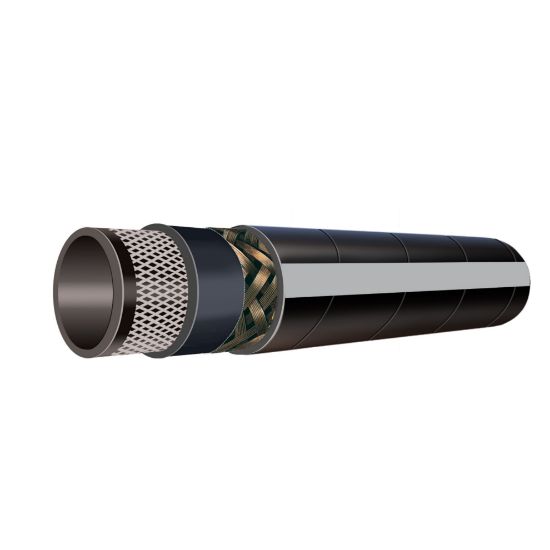

Picture of Anhydrous Ammonia Hose, Series 7261 - 7261-2002K

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Anhydrous Ammonia Hose, Series 7261 - 7261-2002K

Anhydrous Ammonia Hose is designed for transfer of anhydrous ammonia in applications to 180°F and 350 psi, Series 7261
Availability:
Backordered
SKU 7261-2002K
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)2Maximum Working Pressure (psi)350
Minimum Operating Temperature-40 °CDivisionHose Products Division
ApplicationChemical TransferCover MaterialEthylene Propylene Diene Monomer (EPDM)
Package TypeCoilLength per Package50 ft
Cover ColorBlackInside Diameter2 inch
Hose Inner Tube MaterialBlackMediaMild Chemicals (Anhydrous Ammonia)
Maximum Operating Temperature82 °CMaximum Operating Pressure24.1 bar
Cover StructurePerforatedWeight1.61 lb
Specifications MetARPM IP-14Minimum Bend Radius635 mm
Hose Reinforcement Material1 Braid of Textile and 1 Braid of Stainless Steel WireOutside Diameter2.625 inch
