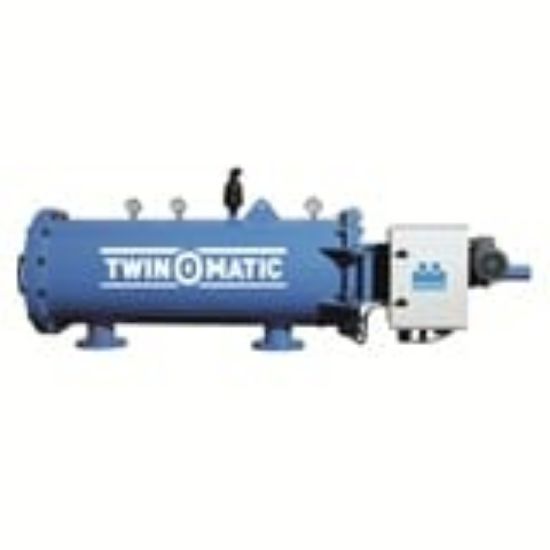

Picture of Automatic self cleaning filter system - TOH

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Automatic self cleaning filter system - TOH

The automatic self cleaning filter system is specially designed for high flow rates and continuous operation. Note: A TwinOmatic is a custom made piece of equipment, always contact us for your specific requirements.
Availability:
Backordered
SKU TOH
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter TypeHorizontalFilter Efficiency Rating50 to 500 micron depending on application.
Flow Rate750 to 11350 bbl/hrConnection SizeDN 80 to DN 350
Minimum Operating Pressure29Equipment TypeFiltration
Industry ApplicationWater IntakeDivisionIndustrial Process Filtration Division
Height21.8 to 30.7Filter Area3 to 23
Width64 to 117Materials of ConstructionHousing: Carbon Steel <br/>Screen: Stainless steel 316L<br/>Nozzles: PVC <br/>others on request
Maximum Operating Temperature122.0Clean Pressure Drop< 1.45
BrandTwin FilterControl VoltageElectrical / PLC
Weight575 to 1660 lb (Empty)
Product resources

Literature and Reference Materials
