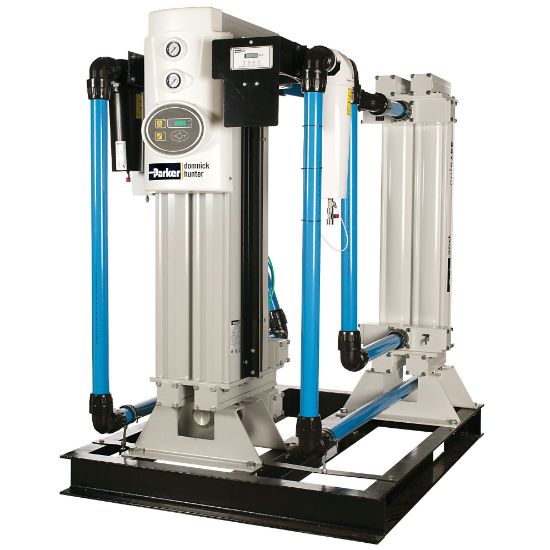

Picture of BAM Breathing Air System - BAM40

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

BAM Breathing Air System - BAM40

Skid mounted, seven stage breathing air system providing breathing air with CO/CO2 reduction for high-capacity multiple personnel breathing air applications at volume flow rates up to 1426m³/h @ 7 barg.
Availability:
Backordered
SKU BAM40
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size2 inchFlow Rate1020 m³/h @ 7 barg (600 cfm @ 102 psig)
Application• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• DemolitionAmbient Temperature131.0 °F Maximum
Depth1655.0 mmCompatible PrefilterOIL-X Grades AO and AA Coalescing (Included)
DivisionGas Separation and Filtration Division EMEAHeight2042.0 mm
IndustryAgriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &Connection TypeBSPP or NPT
Pressure Dew Point-40.0 °FCompatible After FilterOIL-X Grades AO and AA Dry Particulate (Included)<br/>OIL-X OVR Oil Vapour Reduction (Included)
Electrical RequirementsStandard:<br/>85 - 265 V 1ph 50/60HzProduct TypeBreathing Air Purifier
Ingress Protection RatingIP55 Indoor Use OnlyTechnologyFiltration
Noise Level< 75 dBAWidth49.6 inch
Specifications MetPED 2014/68/EU Fluid Group IIProduct SeriesBAM
Operating Pressure58 to 190 psigISO GradeISO8573-1:2010 Class 1.2.1
Operating Temperature41 to 95 °FBrandPARKER
Weight900 kg
