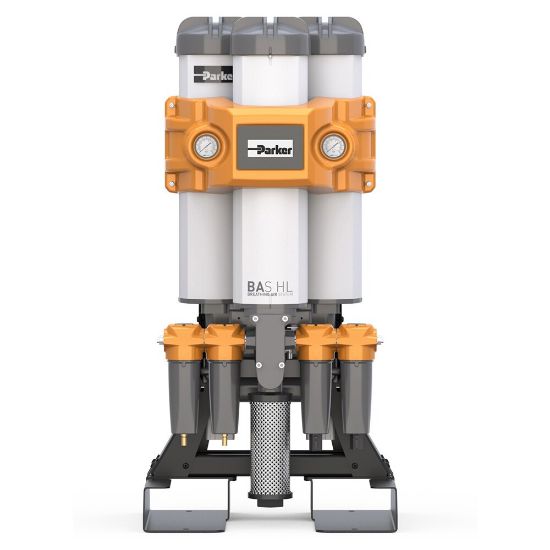

Picture of BAS - Breathing Air System - BASHL050-40G16PP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

BAS - Breathing Air System - BASHL050-40G16PP

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.
Availability:
Backordered
SKU BASHL050-40G16PP
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate55 m³/h @ 7 barg (32 cfm @ 102 psig)Port Size½"
Connection TypeBSPPCompatible After FilterOIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)
IndustryAgriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &Operating Pressure58 to 232 psig
Ambient Temperature131.0 °F MaximumApplication• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• Demolition
Specifications MetPED 2014/68/EU Fluid Group IIWidth22 inch
ISO GradeISO8573-1:2010 Class 1.2.0Weight92 kg
DivisionGas Separation and Filtration Division EMEADivisionGas Separation and Filtration Division EMEA
BrandPARKEROperating Temperature41 to 95 °F
Height1133.0 mmPressure Dew Point-40 °C
TechnologyFiltrationProduct TypeBreathing Air Purifier
Depth20.2 inchNoise Level< 75 dBA
Product SeriesBASCompatible PrefilterOIL-X Grades AO and AA Coalescing (Included)
Ingress Protection RatingN/AElectrical RequirementsN/A - Pneumatic Operation Only
