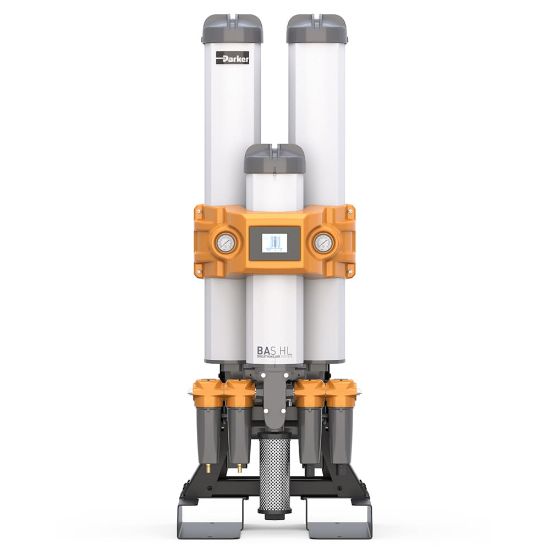

BAS - Breathing Air System - BASHL060-40N16AE

Name: BAS - Breathing Air System - BASHL060-40N16AE
SKU: BASHL060-40N16AE

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.

Availability:

Backordered

SKU BASHL060-40N16AE

POR

Qty:

Products specifications

Attribute name	Attribute value
Port Size	½"	Connection Type	NPT
Flow Rate	90 m³/h @ 7 barg (53 cfm @ 102 psig)	Application	• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• Demolition
Height	1510.0 mm	Compatible Prefilter	OIL-X Grades AO and AA Coalescing (Included)
Operating Temperature	5 to 35 °C	Division	Gas Separation and Filtration Division EMEA
ISO Grade	ISO8573-1:2010 Class 1.2.0	Weight	109 kg
Industry	Agriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &	Electrical Requirements	Standard:<br/>85 - 265 V 1ph 50/60Hz<br/><br/>Option:<br/>24V DC
Compatible After Filter	OIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)	Product Type	Breathing Air Purifier
Technology	Filtration	Ingress Protection Rating	IP55 Indoor Use Only
Noise Level	< 75 dBA	Pressure Dew Point	-40 °C
Specifications Met	PED 2014/68/EU Fluid Group II	Width	22 inch
Product Series	BAS	Depth	19.5 inch
Operating Pressure	4 to 16 barg	Ambient Temperature	55.0
Division	Gas Separation and Filtration Division EMEA	Brand	PARKER
