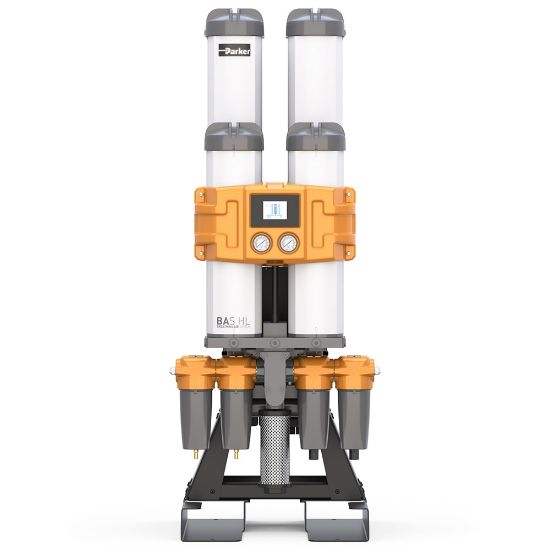

Picture of BAS - Breathing Air System - BASHL075-40N16AE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

BAS - Breathing Air System - BASHL075-40N16AE

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.
Availability:
Backordered
SKU BASHL075-40N16AE
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size1"Connection TypeNPT
Flow Rate185 m³/h @ 7 barg (109 cfm @ 102 psig)Product TypeBreathing Air Purifier
TechnologyFiltrationIngress Protection RatingIP55 Indoor Use Only
Product SeriesBASNoise Level< 75 dBA
Specifications MetPED 2014/68/EU Fluid Group IIAmbient Temperature55.0 °C Maximum
Operating Pressure4 to 16 bargOperating Temperature41 to 95 °F
BrandPARKERDivisionGas Separation and Filtration Division EMEA
Application• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• DemolitionWidth24.8 inch
Height1595.0 mmPressure Dew Point-40 °F
Compatible PrefilterOIL-X Grades AO and AA Coalescing (Included)IndustryAgriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &
Electrical RequirementsStandard:<br/>85 - 265 V 1ph 50/60Hz<br/><br/>Option:<br/>24V DCDivisionGas Separation and Filtration Division EMEA
ISO GradeISO8573-1:2010 Class 1.2.0Depth682.0 mm
Compatible After FilterOIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)Weight432 lb
