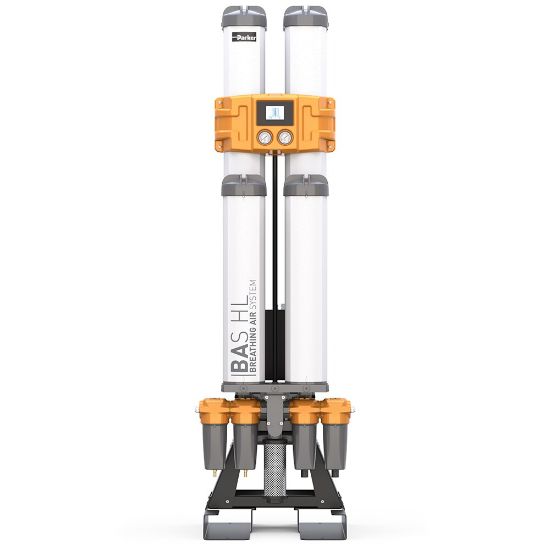

Picture of BAS - Breathing Air System - BASHL085-40N16AE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

BAS - Breathing Air System - BASHL085-40N16AE

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.
Availability:
Backordered
SKU BASHL085-40N16AE
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection TypeNPTFlow Rate300 m³/h @ 7 barg (177 cfm @ 102 psig)
Port Size1½"Compatible PrefilterOIL-X Grades AO and AA Coalescing (Included)
DivisionGas Separation and Filtration Division EMEABrandPARKER
Operating Pressure4 to 16 bargAmbient Temperature55.0
Application• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• DemolitionWidth24.8 inch
ISO GradeISO8573-1:2010 Class 1.2.0DivisionGas Separation and Filtration Division EMEA
Compatible After FilterOIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)Electrical RequirementsStandard:<br/>85 - 265 V 1ph 50/60Hz<br/><br/>Option:<br/>24V DC
IndustryAgriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &Height2105.0 mm
TechnologyFiltrationIngress Protection RatingIP55 Indoor Use Only
Operating Temperature41 to 95 °FPressure Dew Point-40 °C
Product SeriesBASDepth27 inch
Noise Level< 75 dBAWeight255 kg
Product TypeBreathing Air PurifierSpecifications MetPED 2014/68/EU Fluid Group II
