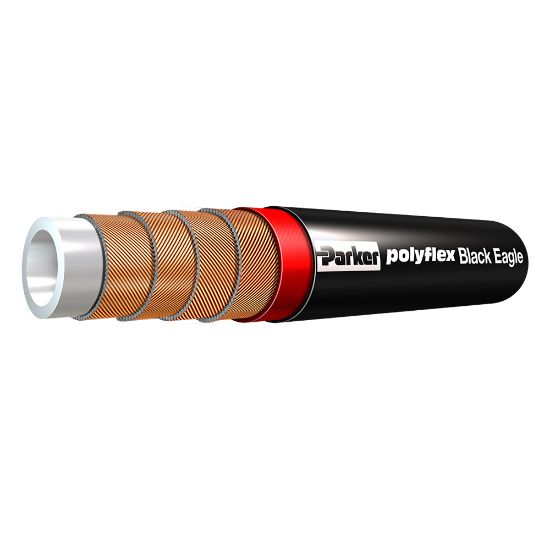

Picture of Black Eagle Hose - 2440N-48V80-PFD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Black Eagle Hose - 2440N-48V80-PFD

Black Eagle Oilfield service hose is up to 30% lighter than R13 rubber hose and 70% lighter than iron pipe.
Availability:
Backordered
SKU 2440N-48V80-PFD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)3Maximum Working Pressure (psi)10000
DivisionParflex DivisionMinimum Operating Temperature-40
Cover MaterialPolyurethaneCover ColorBlack
Size-48Design Factor2.5:1
Maximum Operating Temperature158Specifications MetDNV GL
Compatible FittingLX SeriesHose Inside Diameter3
MediaHydraulic Fluids, ChemicalsApplicationOil & Gas: Cementing operations, Acidizing, General Fluid and Gas Injection, Mud Circulation
Maximum Operating Pressure69Weight12.57
Inside Diameter3Outside Diameter4.800
Minimum Bend Radius43-1/2Hose Inner Tube MaterialPolyamide 11, methanol washed
Hose Reinforcement MaterialFour layers of high tensile steel wireHose Outside Diameter122
