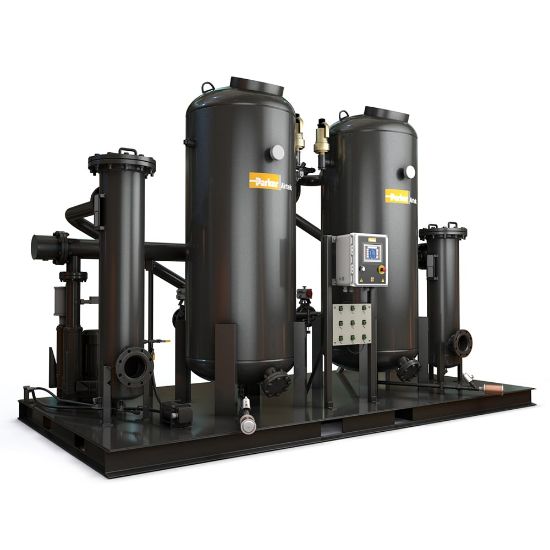

Blower Purge Heat Reactivated Desiccant Air Dryer -TWB Series - TWB1001FY41NNN

Parker Airtek TWB Series Externally Heated Blower Purge Desiccant Air Dryers use heat and the adsorption method to remove moisture from compressed air. Pressure dewpoint of -40°F (-40°C) and flowrate of 200 – 7500 scfm depending on model.
Availability:
Backordered
SKU TWB1001FY41NNN
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Flow Rate (cfm)1000Pressure Dew Point (F)-40
Electrical Requirements460V/3Ph/60HzMinimum Operating Pressure80 psi
Minimum Operating Temperature50 °FProduct TypeBlower Purge
Maximum Inlet Pressure Rating100 PSIPurge Pressure Rate0
Compatible After Filter ElementJE-FC0800-HTCompatible PrefilterJC1000-C
Maximum Operating Pressure150 psiOptional AccessoriesPre and After Filtration
Maximum Ambient Temperature120 °FMinimum Ambient Temperature40 °F
Height102 inchConnection Type3" FLG
BrandAirtekMaximum Flow Rate1699 m3/hour
Installed Condensate Drain TypeDemand Solenoid DrainDivisionIndustrial Gas Filtration and Generation Division
Maximum Operating Temperature120 °FWidth74 inch
Compatible Prefilter ElementJE-CC0800Depth41 inch
Weight5700 lbCompatible After FilterJC1000-FH
