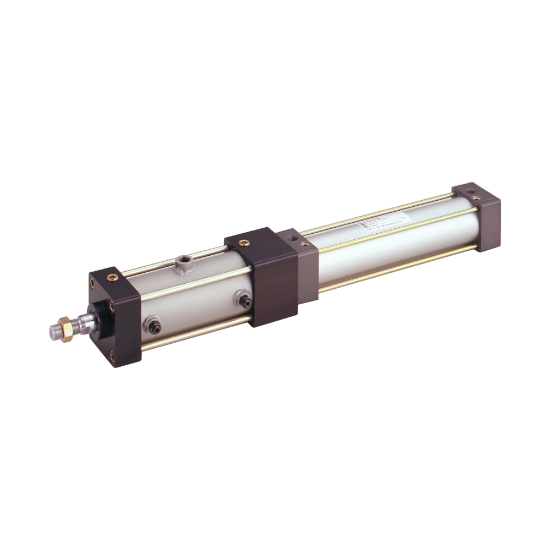

Picture of Brake Cylinder Model:10B-6 - 10B-6-SKU

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brake Cylinder Model:10B-6 - 10B-6-SKU

Pneumatic cylinder 10B-6 series with brake mechanism that is ideal for intermediate stop and emergency stop measures. The tie rod construction guarantees long cylinder life with excellent design and quality without trouble.
Availability:
Backordered
SKU 10B-6-SKU
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Fluid TypeAirRod End StylesRod eye(T-end),Rod eye(S-end),Rod clevis(Y-end)with pin, Floating joint
Bore Diameter (mm)40, 50, 63, 80, 100TypeSingle Brake Type
LubricationNecessary(Use JIS K 2213 Class 1 additive-free turbine oil VG32 or its equivalent.)Speed Range50-300mm/s
Related PartsCB bracketMounting StyleSD, LA, LB, FA, FB, CA, CB, CC
Cushioning TypeWith cushions on both ends(With needle removal preventing mechanism)Bellows MaterialNylon tarpaulin(Standard), Chloroprene(Semi-standard), Conex(Semi-standard)
Pressure Range (MPa)0.35-1.0Temperature Range (C)+5-+60
Cushioning Stroke (mm)16(φ40), 20(φ50-63), 25(φ80-100)Maximum Load Capacity34kg(φ40), 53kg(φ50), 85kg(φ63), 138kg(φ80), 215kg(φ100)
Stop Repeatability (mm)±2 *Load weight:Repeatability at maximum weight of load, Speed:Repeatability at maximum transferring speed(300mm/s)Brake operating directionBoth directions
Brake Release Pressure (Mpa)0.35 (0.4 only for φ50)DivisionTAIYO Division
