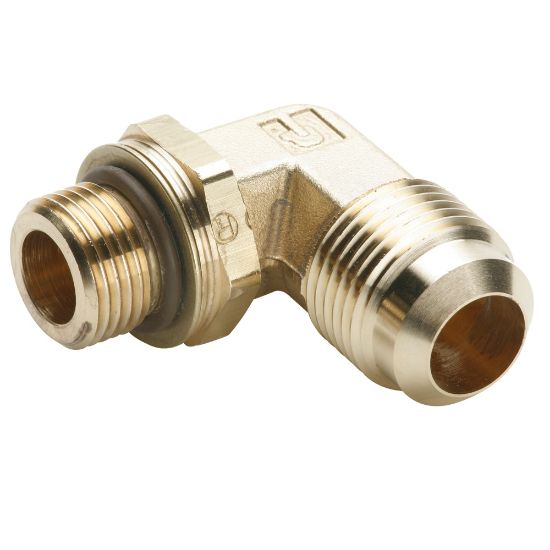

Picture of Brass 45° Flare Fittings - 1495F-12-8

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass 45° Flare Fittings - 1495F-12-8

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.
Availability:
Backordered
SKU 1495F-12-8
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection 1 TypeFlareProduct StyleFlare to Pipe
Connection 3 Tube Outside DiameterNAShape90° Forged Elbow
Connection 2 TypeSAE Straight ThreadConnection 3 TypeNA
Connection 1 Thread Size1-1/16-14 inchConnection 2 Thread Size1-1/16-14 inch
Connection 3 Thread SizeNAConnection 1 Tube Outside Diameter3/4 inch
Connection 2 Tube Outside DiameterNABrandPARKER
DivisionFluid System Connectors DivisionBody MaterialBrass
DivisionFluid System Connectors DivisionTechnologyFluid & Gas Handling
O-Ring MaterialFluorocarbonMaximum Operating Temperature250
Minimum Operating Temperature-65ApplicationAdapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Specifications MetSAE J512, SAE J513MediaWater, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Nut MaterialBrassTube MaterialCopper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Maximum Operating Pressure550
