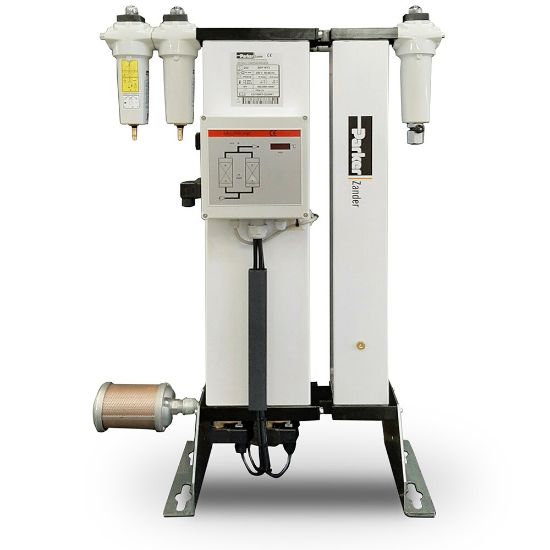

Picture of Breathing Star BSP-MT 1-8 Industrial and Medical Breathing Air System - K1/16BP3-G115MT

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Breathing Star BSP-MT 1-8 Industrial and Medical Breathing Air System - K1/16BP3-G115MT

Small to medium flow breathing air treatment systems providing purified breathing air, with CO/CO2 reduction. Meeting European Pharmacopoeia and other international breathing air standards with volume flow rates up to 139 m³/h @ 13 barg.
Availability:
Backordered
SKU K1/16BP3-G115MT
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size¼ inchElectrical Requirements115V 1ph 50/60Hz
Flow Rate13 m³/h @ 13 barg (8 cfm @ 189 psig)Optional AccessoriesDew Point Sensor
BrandPARKERTechnologyFiltration
DivisionGas Separation and Filtration Division EMEAConnection TypeBSPP
Specifications MetPED 2014/68/EU Fluid Group IIAmbient Temperature50.0 °C Maximum
Application• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• DemolitionIndustryAgriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &
Product TypeBreathing Air PurifierNoise Level< 75
Operating Pressure4 to 16Operating Temperature5 to 50
Weight16.5Product SeriesBSP-MT 1-8
Depth216.0Width575.0
Height403.0ISO GradeISO8573-1:2010 Class 2.2.1
Pressure Dew Point-40Compatible PrefilterOIL-X AOPX010A and AAPX010A (Included)
Compatible After FilterOIL-X AOPX010A (Included)<br/>OIL-X AAPX010A (Option)Ingress Protection RatingIP65 Indoor Use Only
