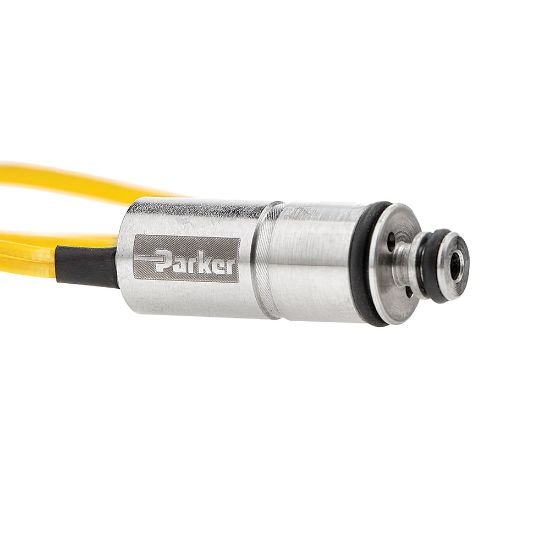

C7 Miniature Cartridge Liquid Valve - C07-224FK05FF-000

Name: C7 Miniature Cartridge Liquid Valve - C07-224FK05FF-000
SKU: C07-224FK05FF-000

The Parker C7 valve is the smallest cartridge solenoid valve in our portfolio with a small-scale 7 mm diameter. This fast and reliable valve is ideal for life science applications and is available in a 2-way normally closed configurations.

Availability:

Backordered

SKU C07-224FK05FF-000

POR

Qty:

Products specifications

Attribute name	Attribute value
Voltage (VDC)	24	Orifice Size (inch)	0.02
Orifice 1 Size (inch)	0.02	Valve Configuration Type	2 Way Normally Closed
Wetted Materials: Seals (Elastomer)	FKM	Seal Material	FKM
Configuration	n/a	Input Voltage	24 VDC
Function	2-Way	Maximum Operating Temperature	122 °F
Actuation Type	Solenoid	Weight	0.11 oz
Flow Rate	up to 260 cm3/min	Mounting Type	Manifold
For Fluid Type	Liquids	Operation Type	Electronic
Maximum Flow Rate	260 cm3/min	Maximum Operating Pressure	up to 116 psi
Minimum Operating Temperature	0 °C	Division	Precision Fluidics Division
Width	0.28 inch	Height	0.79 inch
Leak Rate	< 0.0116 cm3/min	Orifice Size	0.5 mm
Response Time	< 10 ms	Control Method	Hit and Hold
Port Connection	Cartridge Seal	Power Consumption	0.85 W Typical
Cycles per Lifetime	130 Million	Industry Application	Flow Control
Electrical Connection	3.2" (80 mm) Flying Leads	Body & Stem Base Material	Stainless Steel Series 300 and 400
