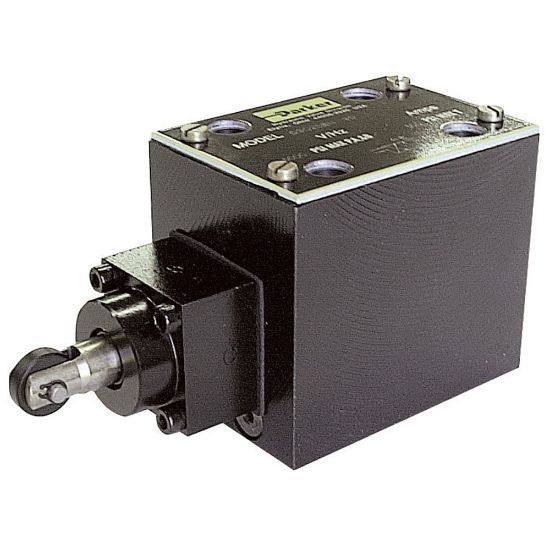

Cam Operated Directional Control Valve - D3C, D3D Series - D3C30BV

Name: Cam Operated Directional Control Valve - D3C, D3D Series - D3C30BV
SKU: D3C30BV

Parker’s D3C and D3D directional control valves are high performance, 4-chamber, direct operated, cam controlled, 3 or 4-way valves.

Availability:

Backordered

SKU D3C30BV

POR

Qty:

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	10 GPM	Size	NFPA D05, CETOP 5, NG 10
Mounting Type	Subplate	Maximum Operating Pressure	5000 PSI
Size	NFPA D05	Maximum Operating Pressure	5000
Maximum Flow Rate	10	Weight	8
Spool Code	4-Way	Seal Material	Fluorocarbon
Body Material	Gray Iron	Spool Position	2-Position
Mounting Type	Subplate	Actuation Type	Hydraulic Pressure
Division	Hydraulic Valve Systems Division	Minimum Operating Temperature	-4
Maximum Operating Temperature	140	Valve Type	Cam Operated Directional Control Valve

Product resources

Literature and Reference Materials

Cam Operated Directional Control Valve Catalog - D3C, D3D Series (PDF)
