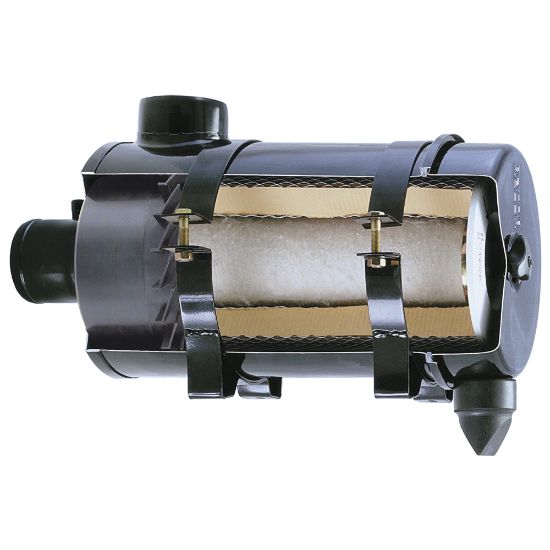

Cartridge Engine Air Filters – Racor ECO, AF, and EA Series - AFSF4

Name: Cartridge Engine Air Filters – Racor ECO, AF, and EA Series - AFSF4
SKU: AFSF4

Racor Cartridge Engine Air Filters ensure delivery of clean, purified air into gasoline and diesel engines. They come available with a wide range of flow rate and mounting options, making them suitable for use in any engine or application.

Availability:

Backordered

SKU AFSF4

POR

Qty:

Products specifications

Attribute name	Attribute value
Pre-Cleaner	Static Vane	Application	Heavy Dust
Materials of Construction	Coated Steel	Connection Type	Straight
Maximum Flow Rate	200 cfm (6 m3/m)	Filter Element Type	Primary Air and Safety Filters
Flow Range	53 to 159 cfm (1.5 to 4.5 m3/m)	Outlet Connection Size	6.4 cm
Mounting Position	Horizontal	For Fluid Type	Engine Air
Output Power	22 to 60 kW	Compatible Element	Primary: AR6060<br/>Safety: AS6121
Length	38.6 cm	Outside Diameter	6.6 inch
Product Series	Cartridge Air	Division	Engine Mobile Original Equipment Division
Application	Mobile and stationary gas and diesel engines	Accessories Included	See literature on Product Support tab
Brand	Racor	Compatible Mounting Clamp	Included
Inlet Connection Size	6.4 cm
