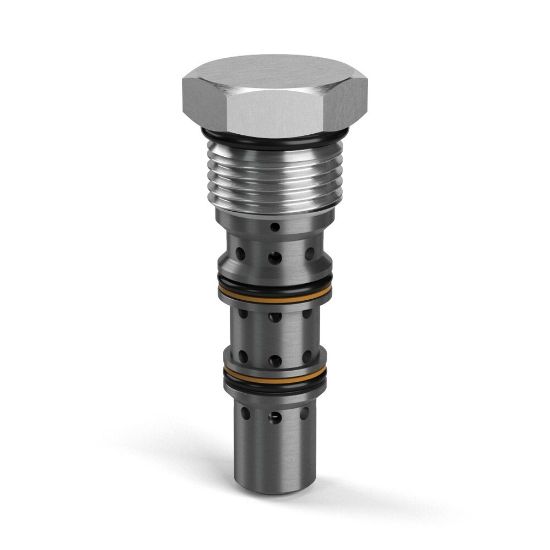

Cartridge Spool Type Inverse Shuttle Valves - K04G3V

Name: Cartridge Spool Type Inverse Shuttle Valves - K04G3V
SKU: K04G3V

REGIONAL - Parker’s K04G3 shuttle is a three way, spring centered inverse style shuttle valve used in dual accumulator circuits to ensure equal charging pressure for each accumulator.

Availability:

Backordered

SKU K04G3V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Flow Rate	13 GAL/MIN, 50 L/MIN
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Weight	0.31
Flow Rate	13	Actuation Type	Pressure Sensing
Division	Mobile Hydraulic Systems Division Europe	Installation Torque	37
Maximum Inlet Pressure Rating	5000	Maximum Flow Rate	13
Cavity Size	C10-4	Configuration	3-Way Ball Type
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400
Maximum Operating Temperature	+400	Leak Rate	5 @ 1450 PSI (100 BAR)
Function	Inverse Shuttle	Operation Type	Spring Centered
