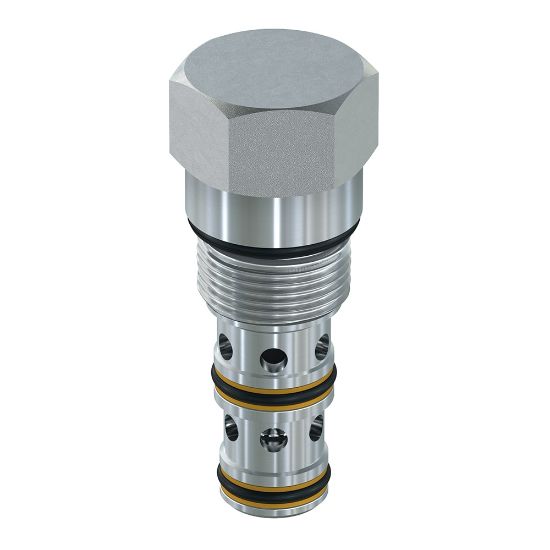

Picture of Cartridge Spool Type Shuttle Valve with Spring Offset - K04B3-10.0N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Cartridge Spool Type Shuttle Valve with Spring Offset - K04B3-10.0N

REGIONAL - Parker's 2-position, 3-way spool type shuttle valve with spring offset are spring biased into its normal position and are capable of flows up to 90 lpm (24 gpm) and 420 bar (6000 psi).
Availability:
Backordered
SKU K04B3-10.0N
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileFlow Rate25 GAL/MIN, 90 L/MIN
Switching Pressure145 PSI, 10 BARSeal MaterialNitrile
Body Materialn/aWeight0.14 kg
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-30 °F
Maximum Operating Pressure420 barActuation TypePressure Sensing
DivisionMobile Hydraulic Systems Division EuropeMaximum Inlet Pressure Rating6000 psi
Installation Torque37 lb-ftFunctionShuttle
Cavity SizeC10-3Maximum Operating Temperature+250 °F
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4For Fluid TypeMineral-based or synthetic hydraulic fluids
Valve MaterialAll parts steel. All operating parts hardened steelOperating Temperature-34 to +121 °C
Flow Rate90 L/minMaximum Flow Rate90 L/min
Leak Rate55 @ 1450 PSI (100 BAR) cm3/minConfiguration3-way Spool Type
Operation TypeSpring OffsetStandard Flow Rate Setting50 L/min
Switching Pressure145 psi
