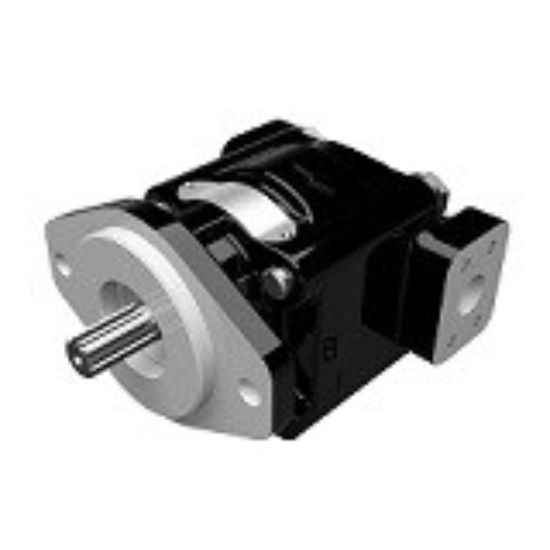

Picture of Cast Iron Motors – PGM330 Series - PGM330

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Cast Iron Motors – PGM330 Series - PGM330

Parker’s PGM330 fixed displacement gear motors offers high performance and high endurance due to its cast iron construction.
Availability:
Backordered
SKU PGM330
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Lengthvaries by configurationMaximum Inlet Pressure Rating15
Product TypeMotor, cast iron bushing, external gearDirection of RotationBi-Directional
For Fluid TypeFire Resistant Fluids : Water-Oil Emulsions 60/40, HFB; Water-Glycol, HFC; Phosphate Esters, HFDDivisionPump & Motor Division
Weight36 lb with 1" Gear (add 1 lb each additional 1/4" of gear. Subtract 10% from total.)Operating Temperature0 to 180 °F with standard seals
Filter Efficiency RatingAccording to ISO 4406: 19/16 at 140 bar (2000 psi), 17/14 at 210 bar (3000 psi), 15/12 at 275 bar (4000 psi)Number of PortsBSPP
Displacement16.1 to 64.6 cm3/rev (Motor)Mounting TypeSAE 2-Bolt or 4-Bolt
Operating Speed400 to 3000Shaft Seal MaterialNBR
Shaft TypeSAE SplinedContinuous Outlet Pressureup to 241
Maximum Continuous Vacuum Pressure13 cm (5 in) Hg at operating temperature
