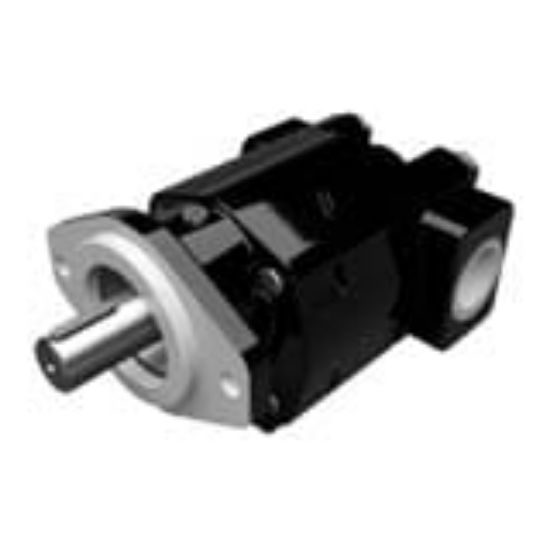

Picture of Cast Iron Motors – PGM350 Series - PGM350

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Cast Iron Motors – PGM350 Series - PGM350

Parker’s PGM350 fixed displacement gear motors offers high performance and high endurance due to its cast iron construction.
Availability:
Backordered
SKU PGM350
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Lengthvaries by configurationMaximum Continuous Vacuum Pressure13 cm (5 in) Hg at operating temperature
Continuous Outlet Pressureup to 241Number of PortsBSPP
Shaft Seal MaterialNBRWeight51 lb with 1" Gear (add 1 lb each additional 1/4" of gear)
Mounting TypeSAE 2-Bolt or 4-BoltFilter Efficiency RatingAccording to ISO 4406: 19/16 at 140 bar (2000 psi), 17/14 at 210 bar (3000 psi), 15/12 at 275 bar (4000 psi)
Shaft TypeSAE SplinedOperating Speed400 to 3000
Direction of RotationBi-DirectionalFor Fluid TypeFire Resistant Fluids : Water-Oil Emulsions 60/40, HFB; Water-Glycol, HFC; Phosphate Esters, HFD
Maximum Inlet Pressure Rating15Operating Temperature0 to 180 °F with standard seals
Displacement20.9 to 104.5 cm3/rev (Motor)Product TypeMotor, cast iron bushing, external gear
DivisionPump & Motor Division
