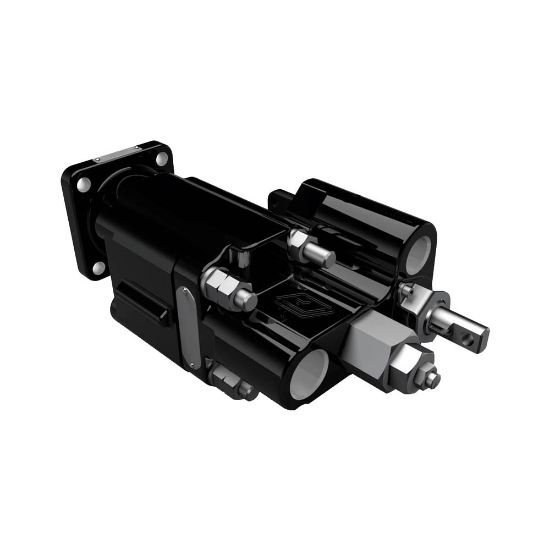

Cast Iron Pumps – C101/C102 Series - 3149325018

Name: Cast Iron Pumps – C101/C102 Series - 3149325018
SKU: 3149325018

Parker’s C101/C102 series dump pumps provide the most reliable, trouble free performance in the industry for dump truck and trailer applications. Operating pressures up to 172 bar (2,500 psi), speeds up to 2,400 rpm, flows up to 27.7 gpm.

Availability:

Backordered

SKU 3149325018

POR

Qty:

Products specifications

Attribute name	Attribute value
Rotation	CW	Additional Options	Air Shift Installed
Displacement	6.38 cu. in. / 104.5 cc	Configuration	4-BOLT SQUARE
Pressure Rating (psi)	2500 PSI	Filter Included	No
Port Connection	NPT	Flow Rate	n/a
Additional Options	n/a	Division	Pump & Motor Division
Media	n/a	Port Type	Tapered Thread
Pump Type	Gear	Shaft Type	SAE
Sensor Type	n/a	Circuit Path	Open
Drain Option	No	Body Material	Cast Iron
Configuration	Single	Port Location	Rear Ports
Seal Material	TEFLON	Control Method	n/a
For Fluid Type	Standard Hydraulic Fluids	Shaft Diameter	7/8 inch
Mounting Option	SAE	Maximum Flow Rate	n/a
Operating Pressure	up to 172 bar	Maximum Noise Level	n/a
Charge Pump Included	No	Radial Load Capacity	n/a
Direction of Rotation	Counterclockwise	Inlet Connection Size	1-1/4 inch
Thru-Drive Capability	No	Maximum Operating Speed	2400 RPM
Maximum Fluid Temperature	80 °C	Minimum Fluid Temperature	-20 °C
Energy Recovery Capability	No	Maximum Operating Pressure	2500 psi
Maximum Kinematic Viscosity	7500 SUS	Minimum Kinematic Viscosity	50 SUS
Weight	32 kg (Max)	Displacement	up to 105 cm3/rev
Product Type	C102	Maximum Displacement	105 cm3/rev
Outlet Connection Size	NPT 1 inch (Cylinder)
