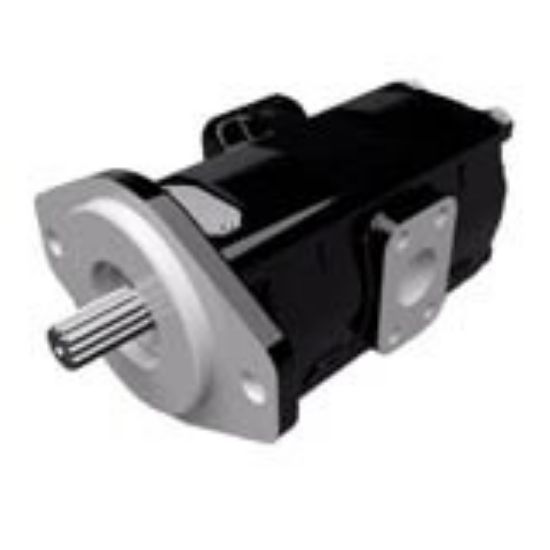

Cast Iron Pumps – PGP315 Series - PGP315

Name: Cast Iron Pumps – PGP315 Series - PGP315
SKU: PGP315

Parker’s PGP315 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction.

Availability:

Backordered

SKU PGP315

POR

Qty:

Products specifications

Attribute name	Attribute value
Length	varies by configuration	Displacement	up to 41
Radial Load Capacity	Consult Parker	Minimum Fluid Temperature	-20
Maximum Flow Rate	n/a	Direction of Rotation	Bi-Rotational
Maximum Noise Level	n/a	Division	Pump & Motor Division
Weight	10	Body Material	Cast Iron
Maximum Kinematic Viscosity	7500	Maximum Operating Speed	3000
Shaft Type	ISO	Media	n/a
Flow Rate	n/a	Operating Pressure	up to 3500
ConfiguratorType	Algroeconfigurator	For Fluid Type	Phosphate-ester
Maximum Operating Pressure	241	Port Location	Rear Ports
Port Type	Straight Threaded	Port Connection	ISO
Minimum Kinematic Viscosity	50	Configuration	Tandem
Filter Included	No	Thru-Drive Capability	No
Pump Type	Gear	Energy Recovery Capability	No
Control Method	Unloading	Maximum Fluid Temperature	80
Maximum Displacement	41	Sensor Type	n/a
Mounting Option	ISO	Circuit Path	Open
Drain Option	No	ConfiguratorModelID	PGP315
Charge Pump Included	No
