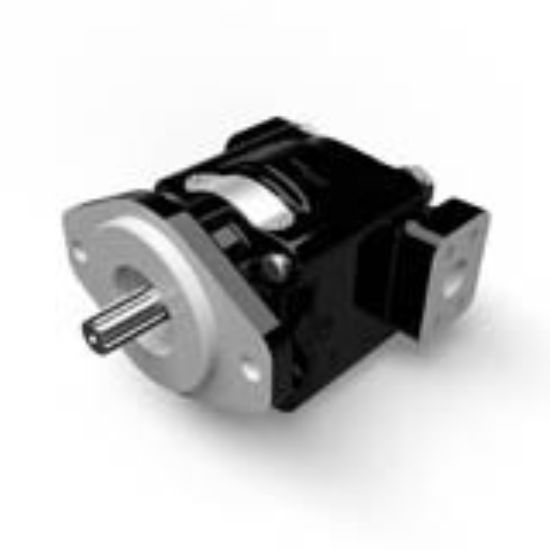

Cast Iron Pumps – PGP330 Series - PGP330

Name: Cast Iron Pumps – PGP330 Series - PGP330
SKU: PGP330

Parker’s PGP330 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction.

Availability:

Backordered

SKU PGP330

POR

Qty:

Products specifications

Attribute name	Attribute value
Length	varies by configuration	Radial Load Capacity	356
Displacement	up to 65	Charge Pump Included	No
Drain Option	No	Filter Included	No
Port Type	Straight Threaded	Thru-Drive Capability	No
Port Connection	ISO	Pump Type	Gear
Direction of Rotation	Counterclockwise	Minimum Kinematic Viscosity	50
Configuration	Tandem	Maximum Kinematic Viscosity	7500
Division	Pump & Motor Division	Body Material	Cast Iron
Mounting Option	ISO	Sensor Type	n/a
Weight	19	Circuit Path	Open
ConfiguratorType	Algroeconfigurator	Flow Rate	n/a
For Fluid Type	Phosphate-ester	Maximum Operating Pressure	241
Minimum Fluid Temperature	-20	Maximum Flow Rate	n/a
Maximum Noise Level	n/a	Maximum Displacement	65
Maximum Fluid Temperature	80	Energy Recovery Capability	No
ConfiguratorModelID	PGP330	Port Location	Rear Ports
Control Method	Load Sense	Media	n/a
Shaft Type	ISO	Operating Pressure	up to 3500
Maximum Operating Speed	3000
