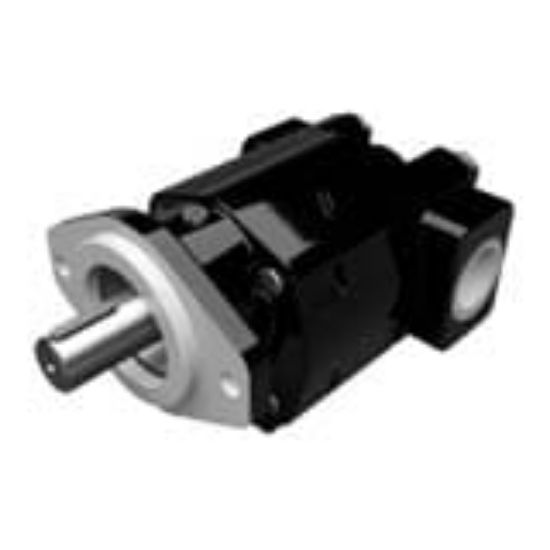

Picture of Cast Iron Pumps – PGP350 Series - PGP350

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Cast Iron Pumps – PGP350 Series - PGP350

Parker’s PGP350 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction.
Availability:
Backordered
SKU PGP350
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Lengthvaries by configurationMounting Type4-Bolt SAE including "ZF" style"
Shaft Seal MaterialFPM [FKM]Operating Pressureup to 3500
Median/aRadial Load Capacity1125 lb with Outboard Bearings
Maximum Flow Raten/aShaft TypeSAE Splined or Keyed
Flow Raten/aMaximum Operating Pressure3500
Maximum Displacement6.4For Fluid TypeFire Resistant fluids: water-oil emulsions 60/40 - HFB, water-glycol - HFC & phosphate-esters - HFD, Mineral oil
Operating Speed400 to 3000Displacementup to 105
Filter Efficiency Rating17/14 at 210 bar (3000 psi)Operating Temperature0 to 150 °F w/FPM seals
Maximum Inlet Pressure Rating15Product TypePump with cast iron bushing, external gear
Direction of RotationCounterclockwiseContinuous Outlet Pressure3500.0
Body MaterialCast IronMaximum Continuous Vacuum Pressure5 inch-Hg at operating temperature.
Number of PortsMetric Split FlangePump TypeFixed
Weight51 lb with 1" gear. Add 1 lb each additional 1/4" of gear.DivisionPump & Motor Division
