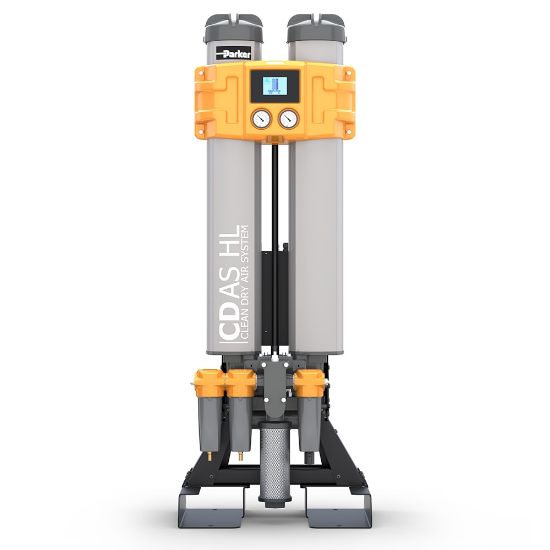

Picture of CDAS HL Medium Flow Heatless Compressed Air Dryer System - CDASHL050-40G16AE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CDAS HL Medium Flow Heatless Compressed Air Dryer System - CDASHL050-40G16AE

Medium flow compressed air treatment systems providing pressure dew points of -70°C, -40°C or -20°C at flow rates up to 300 m³/hr @ 7 barg. Suitable for all industrial compressed air applications.
Availability:
Backordered
SKU CDASHL050-40G16AE
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection TypeBSPPPort Size½ inch
Flow Rate55 m³/h @ 7 barg (32 cfm @ 102 psig)ISO GradeClass 2.2.2 or Class 2.3.2
Pressure Dew Point-40°C (-40°F) or -20°C (-4°F)ATEX Specifications MetNo
Electrical Requirements85 - 265V 1ph 50/60HzBrandPARKER
TechnologyFiltrationDivisionGas Separation and Filtration Division EMEA
DivisionGas Separation and Filtration Division EMEADepth19 inch
Operating Temperature5 to 50 °COperating Pressure4 to 16 barg
Specifications MetPED 2014/68/EU Fluid Group IIApplicationCompressed Air Applications
Noise Level< 75 dBAProduct TypeCompressed Air Dryer
Width559.0 mmHeight1133.0 mm
Ambient Temperature55.0 °C MaximumIngress Protection RatingIP55 Indoor Use Only
Product SeriesCDASWeight76 kg
IndustryIndustrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & DentalProduct StyleHeatless
