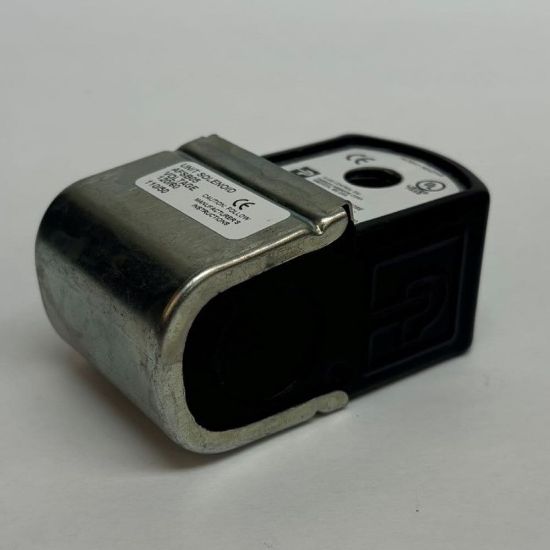

Chart 4 Solenoid Coils - CFSB01

Name: Chart 4 Solenoid Coils - CFSB01
SKU: CFSB01

Gold Ring™ brand solenoid coil kits for use on pressure vessels with "Coil Reference 4" / "Chart 4" compatiblity listed in FCD General Purpose Catalog

Availability:

Backordered

SKU CFSB01

POR

Qty:

Products specifications

Attribute name	Attribute value
Coil Type	Splice Box w/ 6" Leads	Input Voltage	24/60
Insulation Class	Class F	Ingress Protection Rating	NEMA 1
Specifications Met	cURus Recognized Component; CE - Low Voltage, EMC	Power Consumption	11
Compatible Valve	For Chart 4 Compatible Pressure Vessels	Division	Fluid Control Division
Input Voltage	24/60	Coil Type	Splice Box w/ 6" Leads
Ingress Protection Rating	NEMA 1	Power Consumption	11 W
Insulation Class	F (155°C)	Specifications Met	CURus Recognized Component
Compatible Valve	For Chart 4 Compatible Pressure Vessels

Product resources

Literature and Reference Materials

Tube Seal (PDF)
